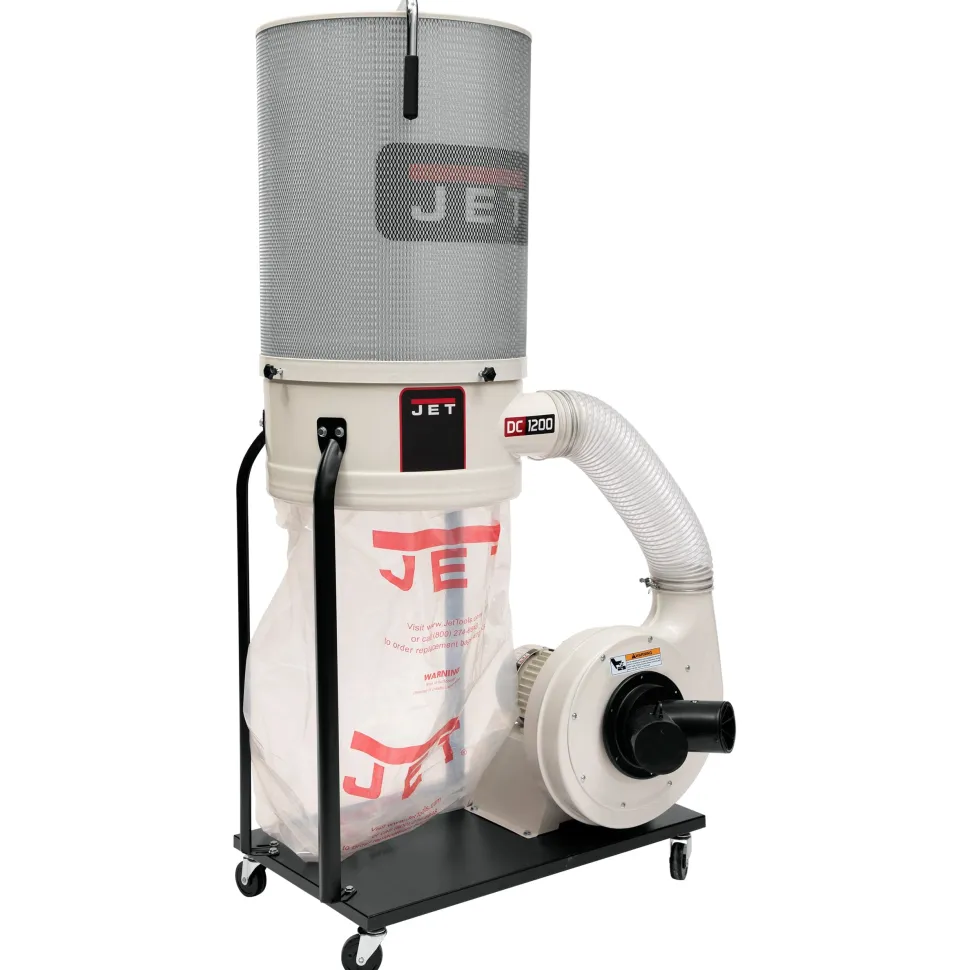

Vortex Cone Dust Collector with 2 Micron Canister Kit 2 HP 1 Ph 230V DC-1200VX-CK1

140,89 $

SKU: SKUHRLLQA Categories: Dust Collection & Air Filtration, Dust Collection & Air Filtration, Dust Collectors, Dust Collectors, Woodworking Machines, Workshop Tag: Jet Brand: Jet

Description
Reviews (0)

The Jet® DC-1200VX-CK1 Dust Collector offers superior particle collection thanks to its exclusive Vortex Cone™ technology, which improves chip separation to prevent the filter’s clogging, strengthening performance quality and extending the lifespan of the machine. The totally enclosed, fan-cooled, 2-horsepower motor is rated for continuous duty with more than enough horsepower for efficient air movement, while the precision-balanced, all-steel impeller maximizes air intake. The see-through design of the dust bag prevents premature bag change-outs while filtering up to 98% of 2-micron particles, and the sewn-in snap ring makes for rapid insertion and removal. Its canister is installed and removed without tools thanks to the large, ergonomic knobs that are easy to handle. Plus, four heavy-duty casters make for easy mobility around the workshop.

Features:

Vortex Cone improves chip separation and collector bag packing efficiency

Eliminates premature filter clogging for sustained performance

Single-stage design for economical and quiet operation

Industrial controls designed for years of trouble-free use

Quick-connect collection bags with elastic band for fast, easy installation and removal

High air velocity (CFM) design stands up to any competitive specifications

Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty

Includes four casters for maneuverability and total portability

Specifications:

Model: DC-1200VX-CK1

Motor Type: TEFC

Motor: 2 HP

Motor Phase: 1Ph

Motor Voltage: 230V

Prewired Voltage: 230V

Motor Current: 8A

Overall Size (L x W x H): 37″ x 22″ x 79″

Net Weight: 170 lb

Sound Rating at 3′ Distance: 80-85db

1-Hose Connection Diameter: 6″

2-Hose Connection Diameter: 4″

Bag Diameter: 20″

Filter Bag Length (installed): 25″

Collector Bag Capacity (cubic feet): 5.3

Collector Bag Length: 29″

Air Flow at 4″ (CFM): 1,200

Static Pressure (inches of water): 11-1/2″

Filter Bag Efficiency: 98% of 2 micron particles

Air Inlet: (1) at 6″ or (2) at 4″

Impeller Diameter: 12″

Impeller Material: Steel

Separator Tank Diameter: 20″

Separator Tank Height: 10″

What’s Included:

(1) Jet® Vortex Cone Dust Collector with 2 Micron Canister Kit – 2 HP 1 Ph 230V – DC-1200VX-CK1

FAQs

Can this dust collector handle a planer or jointer without clogging?

Yes, the Vortex Cone design helps separate chips efficiently, allowing it to handle planers and jointers with reduced clogging. It’s well-suited for high-volume chip collection.

Is the canister easy to clean, and does the internal paddle work well?

Yes, the canister filter is easy to maintain, and the internal paddle system helps knock dust loose for quick cleaning. This keeps airflow consistent with minimal effort.
