120,89 $

SKU: SKUIZ0EQG Categories: Dust Collection & Air Filtration, Dust Collection & Air Filtration, Dust Collectors, Dust Collectors, Woodworking Machines, Workshop Tag: Oneida Air Systems Brand: Oneida Air Systems

Description
Reviews (0)

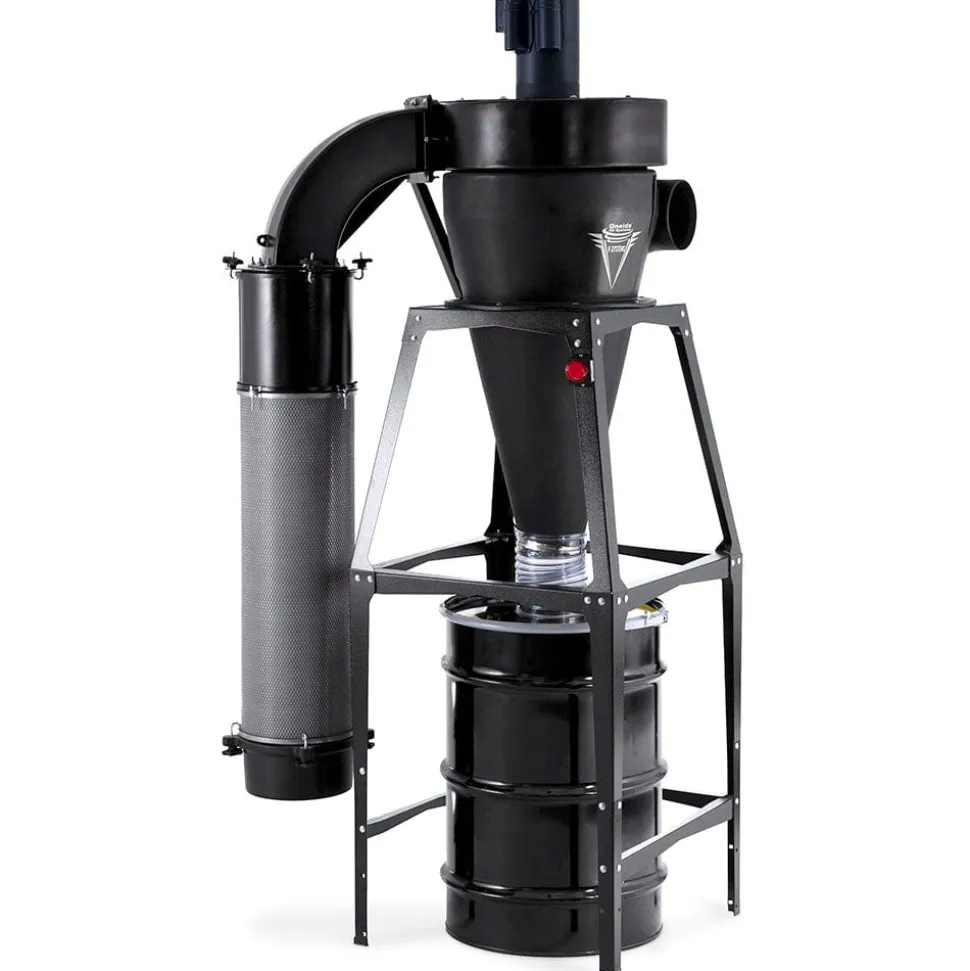

Quiet, Compact, and Powerful – Ideal for Small Personal Workshops! This system is ideal for use in small 1-2 man shops operating tools such as lathes, planers, radial/miter saws, and more! The V-System’s molded static dissipative resin construction speeds up and simplifies system assembly, maximizes airflow performance, and significantly reduces noise levels.

Features:

Industrial 3HP 230V U.S. Made Motor

Magnetic Starter w/ Overload Protector

Wireless RF Remote Control Keyfob

High-Efficiency Molded Cyclone Separator

HEPA-Grade Filter Media

Stacking Sound Filter & Drop-in Silencer

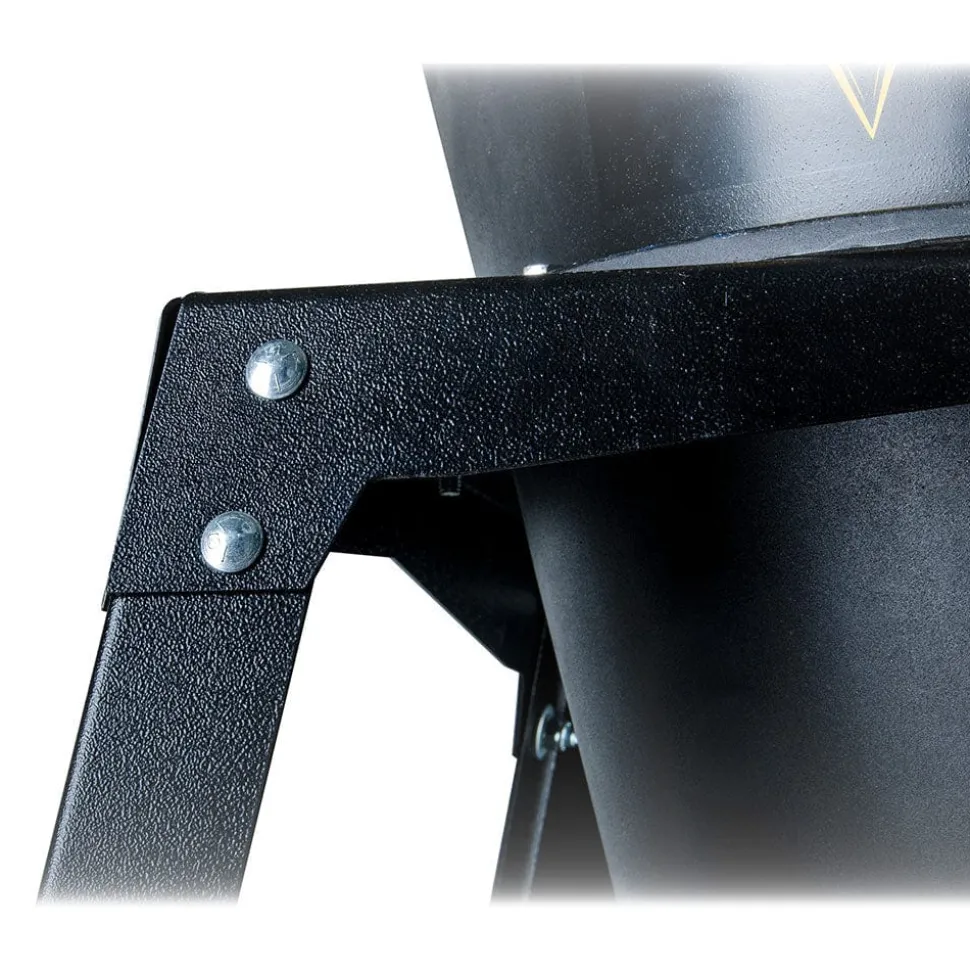

Compact Steel Angle Frame Stand

55 Gallon Reinforced Steel Dust Bin

Dust Sentry™ Bin Fill Level Indicator

1 Year Limited Warranty

cETLus Certified and NFPA Compliance Ready

Specifications:

SKU: XXVM003055

Horsepower: 3 hp

Motor Type: U.S. TEFC Motor

Motor Service Factor: 1.0

Voltage: 220-240V

Recommended Breaker Size: 20A

Amperage (Typical): 13A

Motor FLA: 13

Phase Option: Single-Phase (Pre-Wired)

Frequency: 60Hz

Power Connector Type: NEMA 6-20, 250V/20A

Power Cord Length: 10 feet

Impeller Type: Single-piece, backward inclined, non-sparking/non-ferrous

Impeller Size: 15″ Dia.

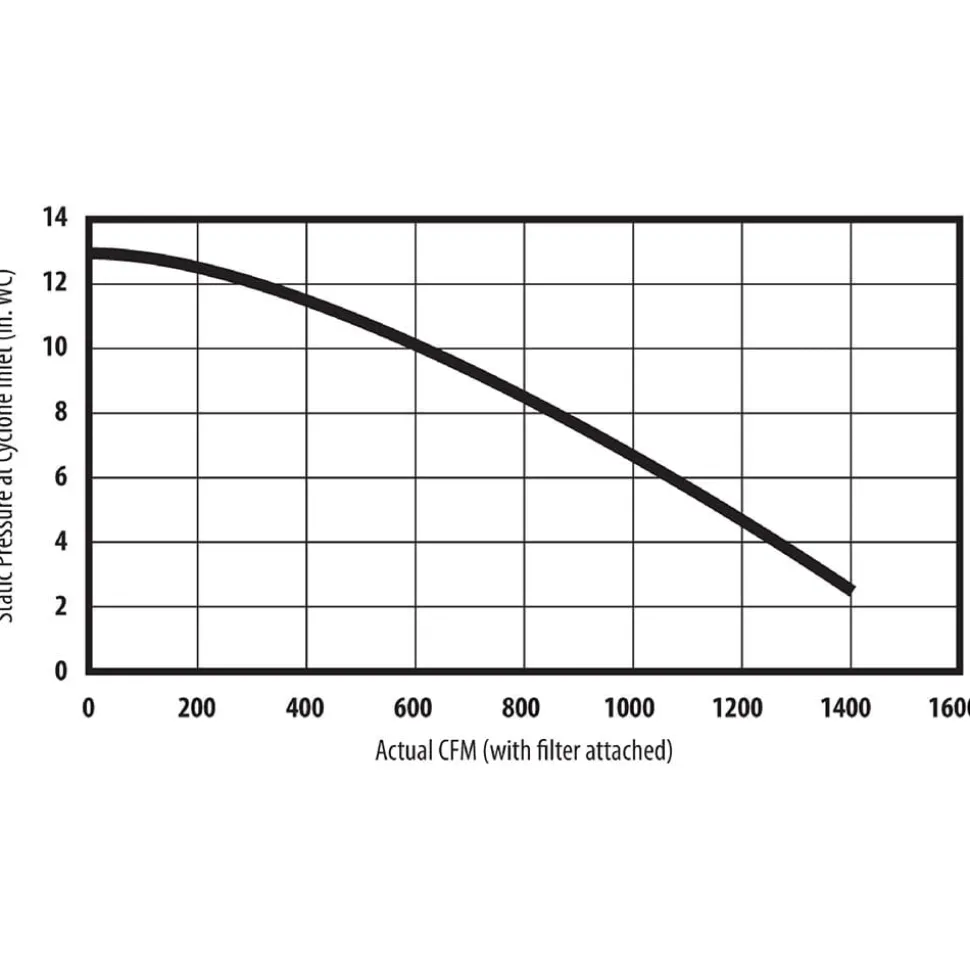

Real CFM Rating: 1,349 Actual CFM at 2.3″ WC

Free Fan CFM Rating: 2,940 CFM

Maximum Suction: 13″ WC

Max. Open Blast Gates: 2 Gates

Noise Level: 74dBA @ 10 ft

Motor Speed Type: Fixed

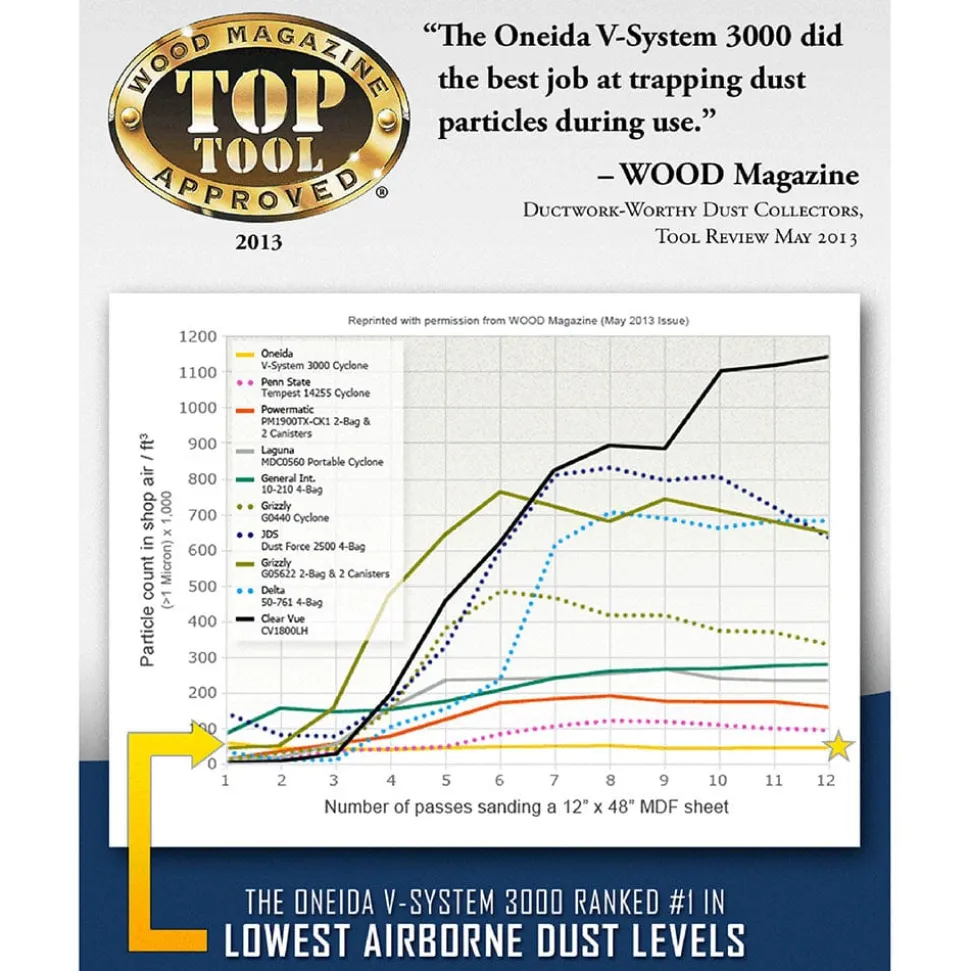

Cyclone Separation: Removes over 99% of fine wood dusts

Filter Type: HEPA Grade ePTFE Media

Filtration Efficiency: E12 Minimum Efficiency Rating

Total Filtration Area: 95 sq ft

Waste Capacity: 55 Gallons

Remote Control: Included

Primary Build Materials: Static Dissipative Polyethylene

Welding: N/A

Static Resistance Rating: Static Dissipative

Color: Black

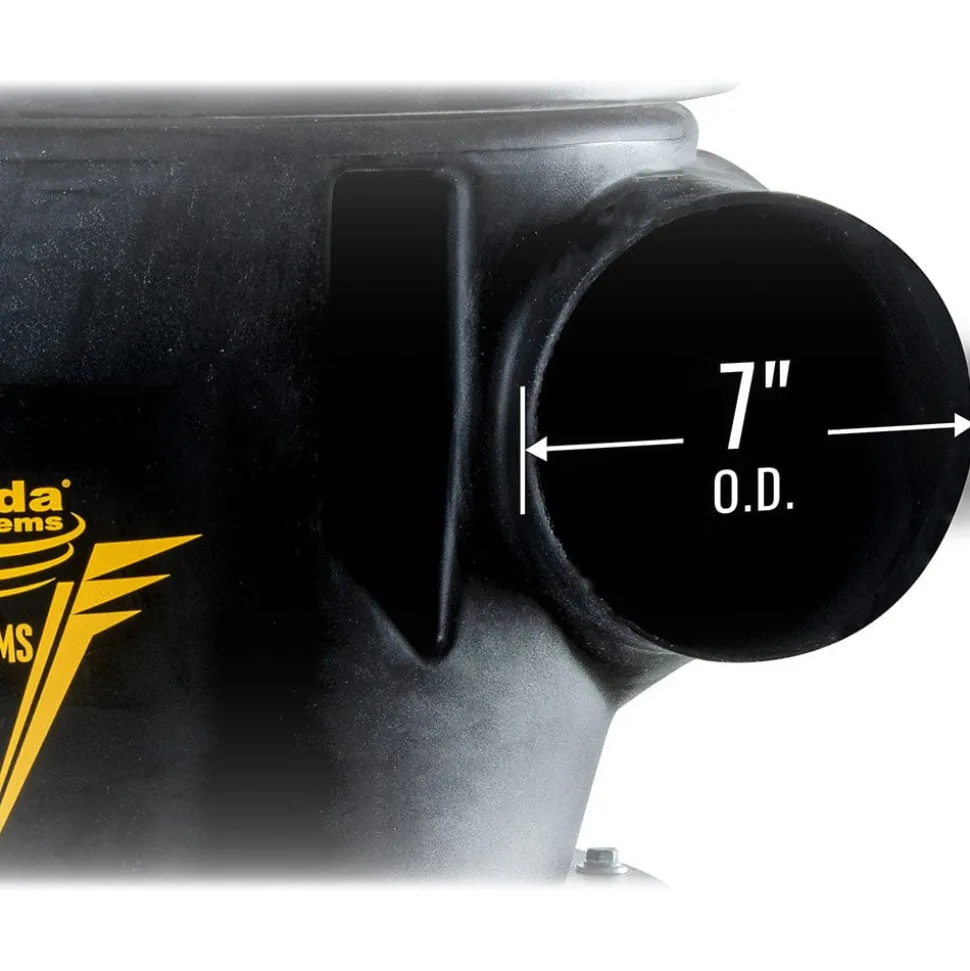

Inlet Size: 7″ OD

Outlet Size: Square ID: 7-3/8″(W) x 6-3/8″(H)

Discharge Size: 7″ Dia.

Width: 47″

Depth: 30″

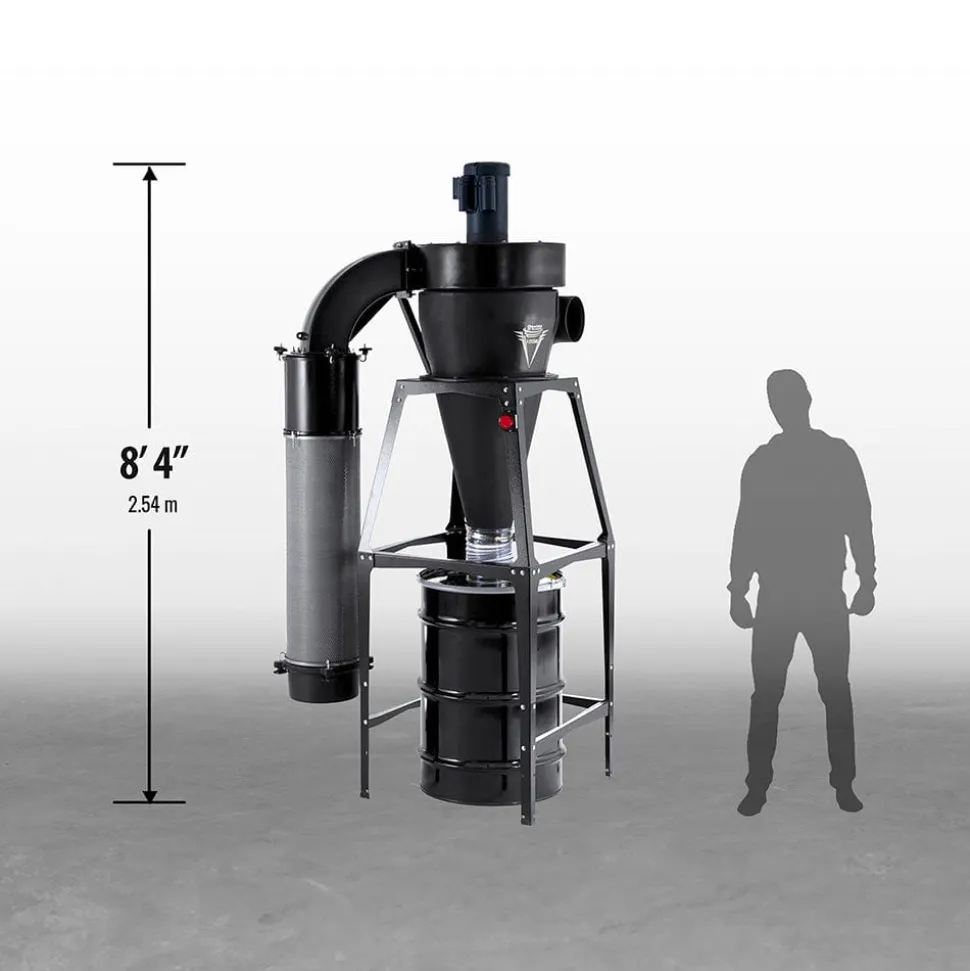

Height: 100″

Height to Center of Inlet: 75″

Actual Weight: 299 lbs

What’s Included:

Blower Motor Assembly

Magnetic Starter

Fan Housing

Filter Plenum

Stacking Sound Filter

Internal Silencer

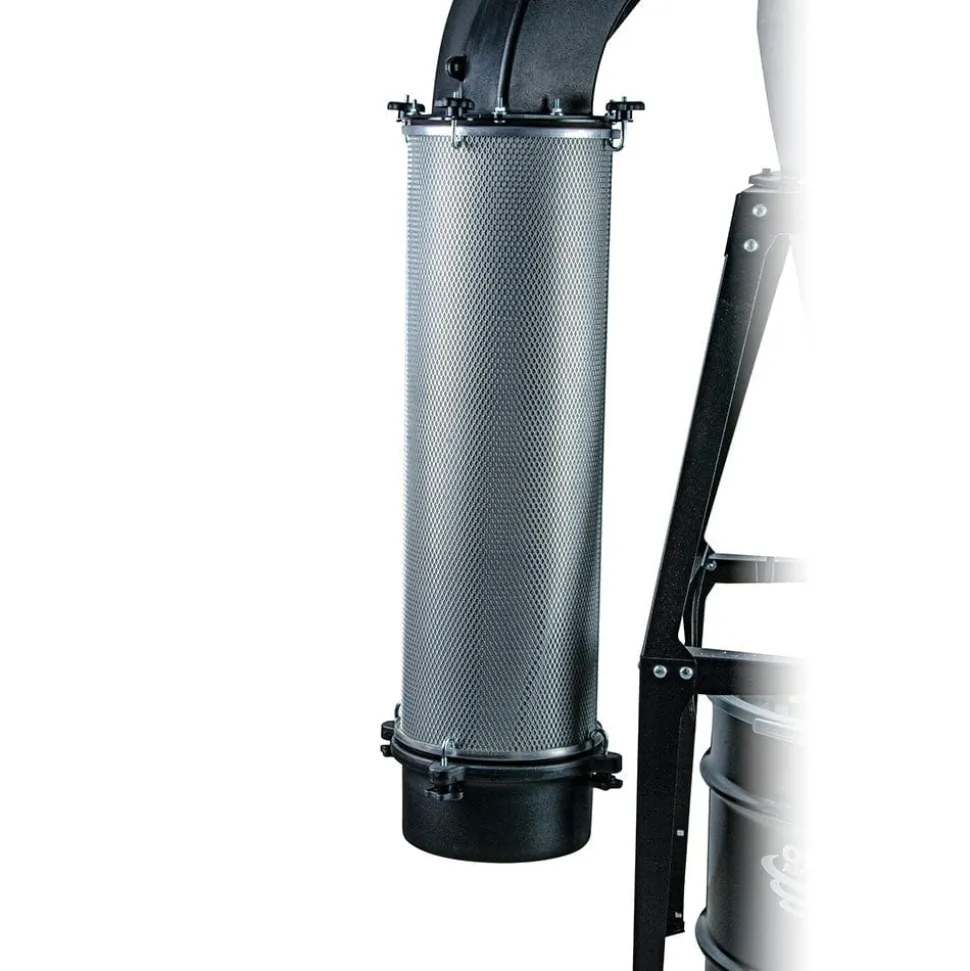

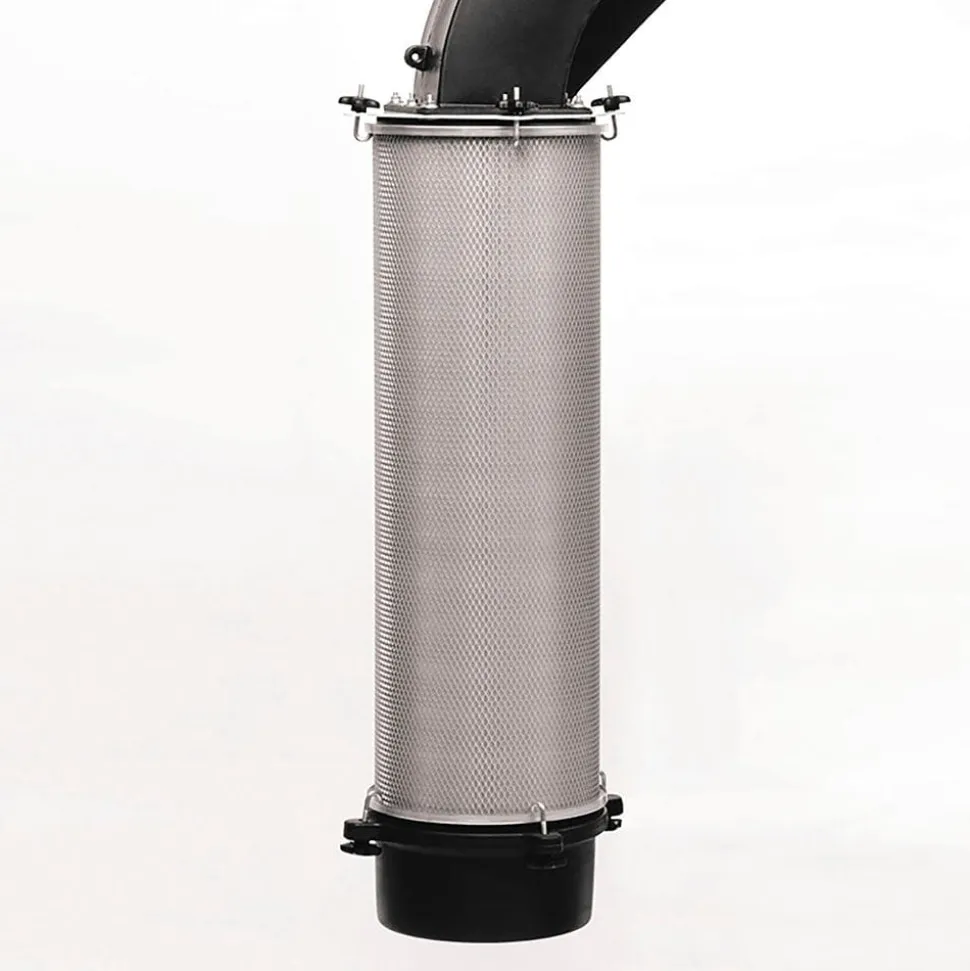

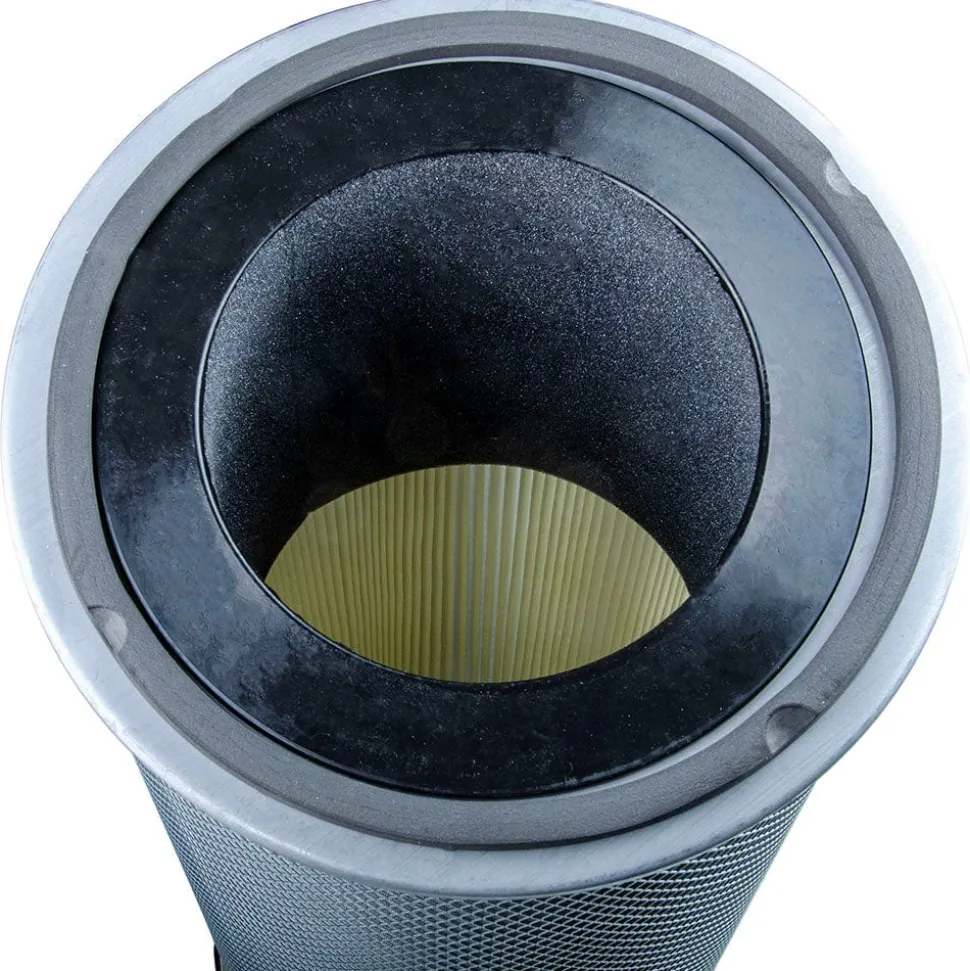

FlameGuard Cartridge Filter

Freestanding Leg Kit

Cyclone Separator

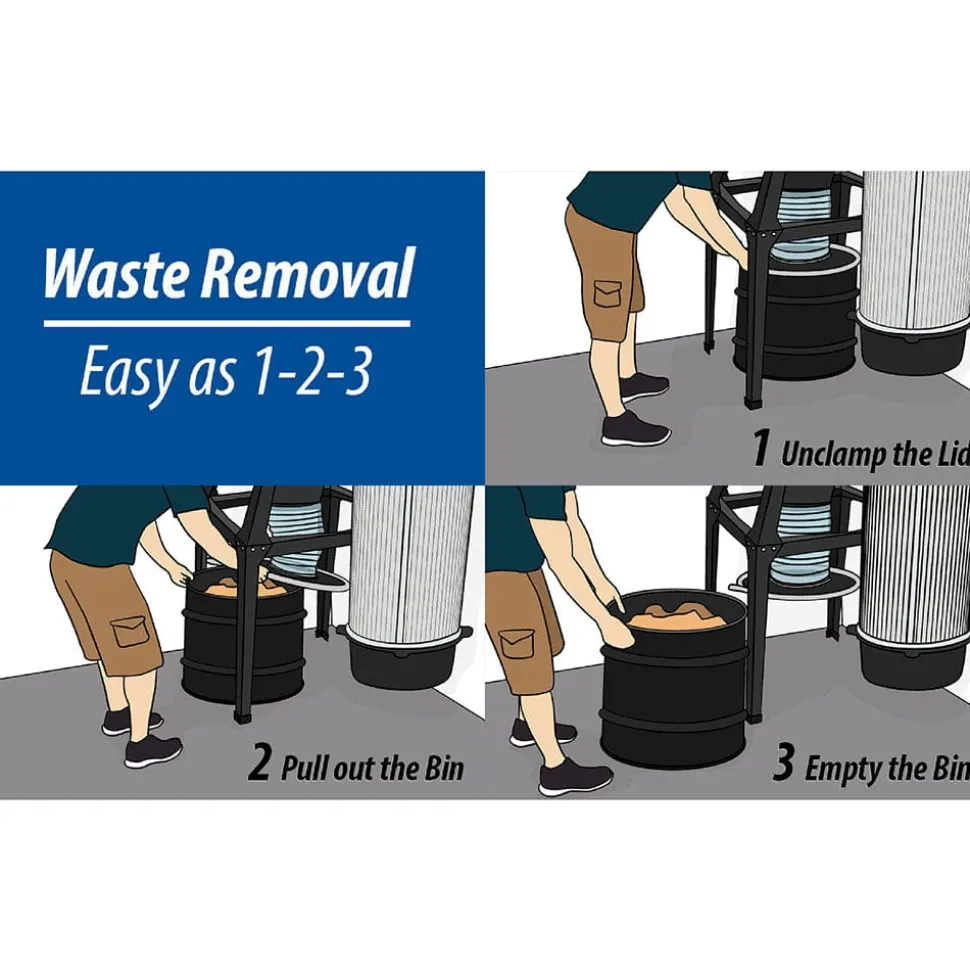

Steel Dust Bin

Bin Level Indicator

Remote Control
