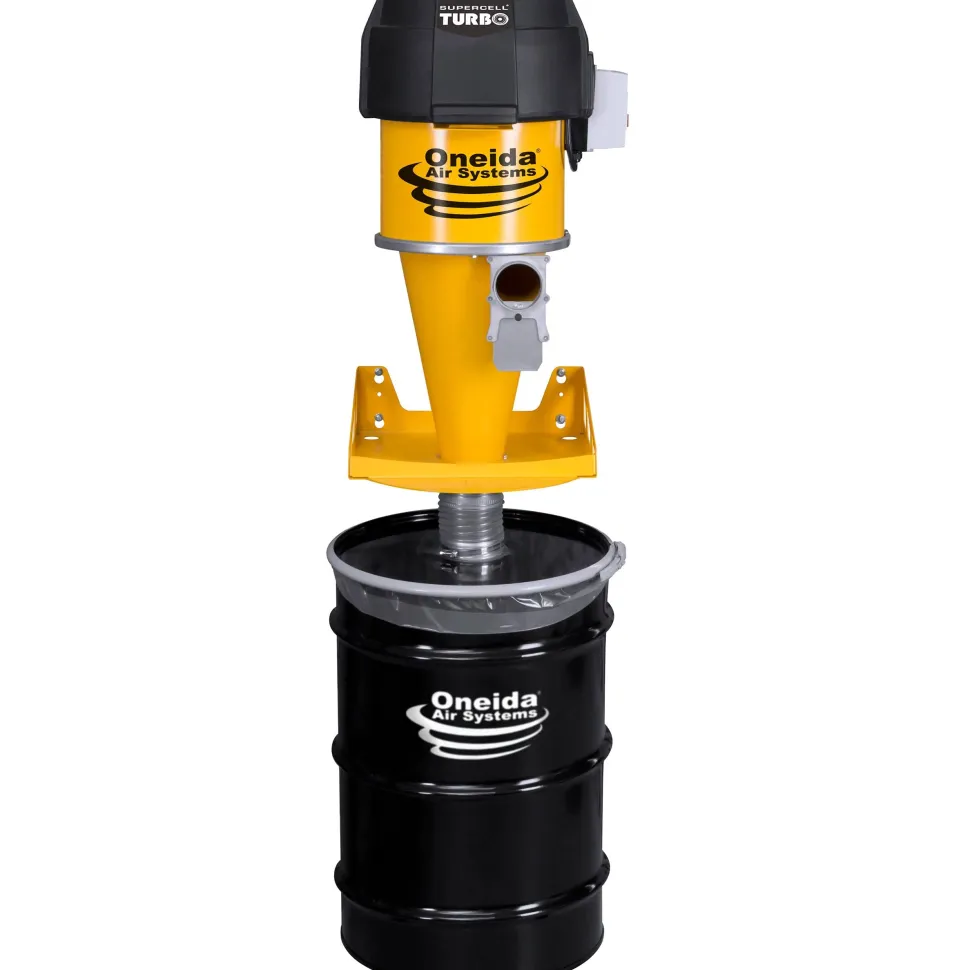

Supercell Turbo 55-Gallon High-Pressure Dust Collector

Original price was: 3 499,00 $.Current price is: 132,99 $.

SKU: SKUNYXDXU Categories: Dust Collection & Air Filtration, Dust Collection & Air Filtration, Dust Collectors, Dust Collectors, Woodworking Machines, Workshop Tag: Oneida Air Systems Brand: Oneida Air Systems

Description
Reviews (0)

New from Oneida, the Supercell Turbo Charged, model XSK455000, features everything you know and love regarding the original line of Supercell but features 30% more airflow. The Supercell Turbo is ideal for handheld and portable tools, especially small CNC routers. The adaptable design in the shop, connecting to tools by up to an astounding 100′ of 4″ house or ductwork.

Features

10x higher suction pressure than standard dust collectors and 30% more airflow over the classic Supercell

Universal design collects from an 1″ to 5″ diameter port through up to 100′ of hose and ductwork

55-gallon dust bin with automatic bag holder and fill level indicator

HEPA-grade media filter with internal pulse filter cleaner

Mounting bracket for wall studs 16″ on center

Combined 6.7HP, 230V High Pressure Fan Motors

Supports up to three 1″ to 2.5″ Dust Ports

Wireless radio frequency remote control Key Fob

Heavy-gauge steel cyclone pre-separator

Internal pulse filter cleaner system

Reinforced dust bin with viewing window

Automatic bag holder system

Dust Sentry bin fill level indicator

NFPA compliance ready

cETLus: certified to both U.S. and Canadian product safety standards by an NRTL

Conforms to UL-1017 and Can/CSA-C22.2 # 243 standards

Specifications

Horsepower: 6.7HP

Motor Type: 4x 1300W Modular Motors

Voltage: 208-230V

Recommended Breaker Size: 30A

Amperage: 22A, 60Hz

Phase: 1PH (single phase)

Power Cord: 10′, bare wiring – includes 2 hot and 1 ground for direct wiring plug not included

CFM Rating: 536 CFM @ 2.3″ WC, Free Fan CFM: 634 CFM

Maximum Suction: 97.8WC

E12 Minimum Efficiency rating, Merv Rating MERV 16+

Total Filtration Area: 40sq ft.

Waste Capacity: 55 Gallon

Built with cold rolled steel and seam welded

Static Resistance Rating: Conductive (metal)

Inlet: 4″ O.D.

Discharge Port: 5″ O.D.

Overall Dimensions: 23.5″ w x 23″d x 83″ h allow additional 24″ of clearance height for maintenance

Includes

Wall mount bracket for 16″ standard stud spacing

5 replacement bags

4″x25′ Vacuum-rated SD urethane flex-hose

Key Fob

Blast gate

Turn Key Clamp: 2 each

Fan Motor Assembly

Magnetic Starter

Remote Control

Cartridge filter

Pulse Filter Cleaner

Cyclone Separator

Dust Bin

Dust Sentry bin fill level indicator

Automatic bag holder system

Only use vacuum pressure rated flex-hose and duct with the Supercell Dust Collector

Due to systems high suction, standard hoses/pipe may collapse and cause damage to equipment or injury

Remote Control is packed in the starter

Weight 130 lbs.
