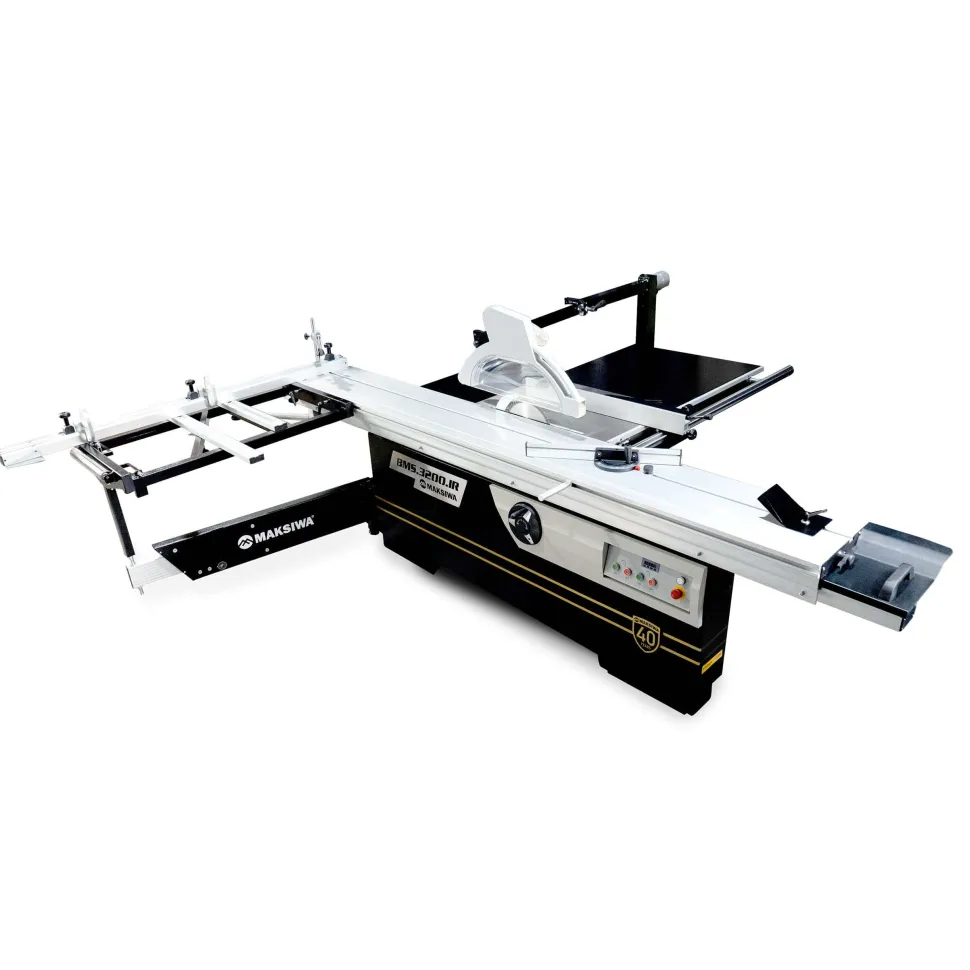

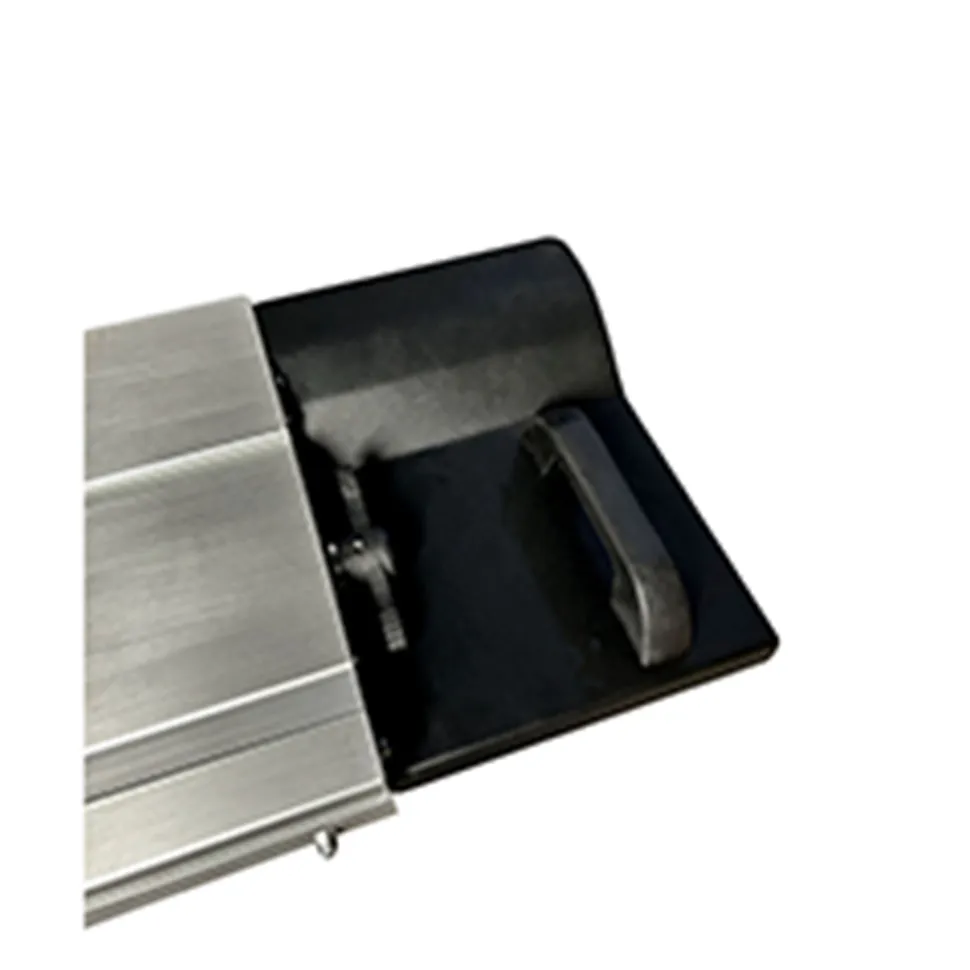

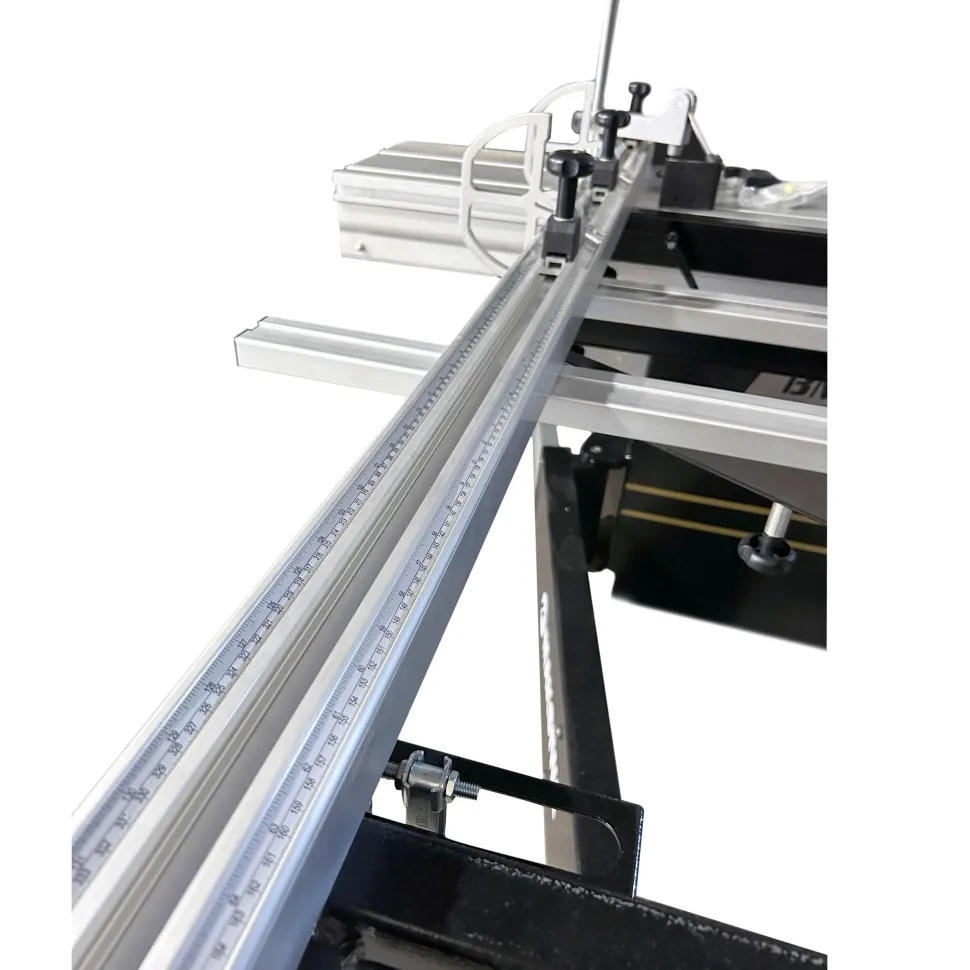

Sliding Panel Saw 5HP 1Ph

128,99 $

SKU: SKUOUBJUV Categories: Panel Saws, Saws, Woodworking Machines Tag: Maksiwa Brand: Maksiwa

Description
Reviews (0)

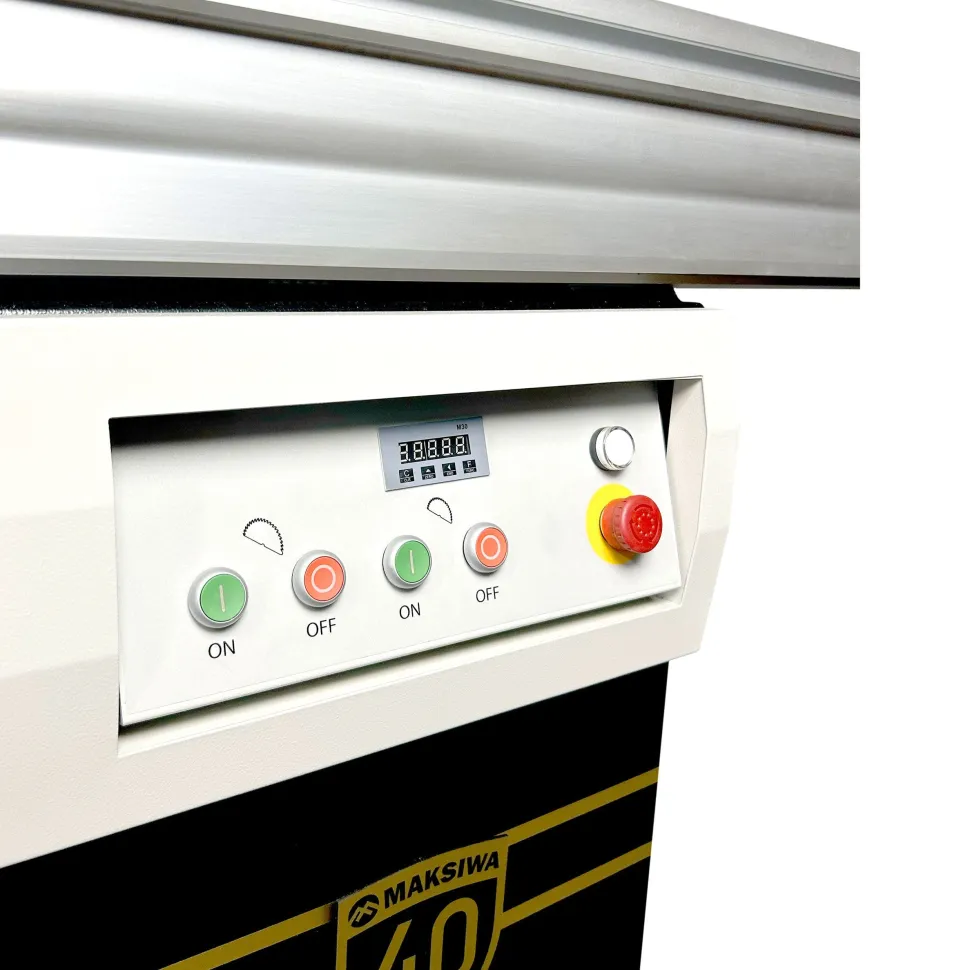

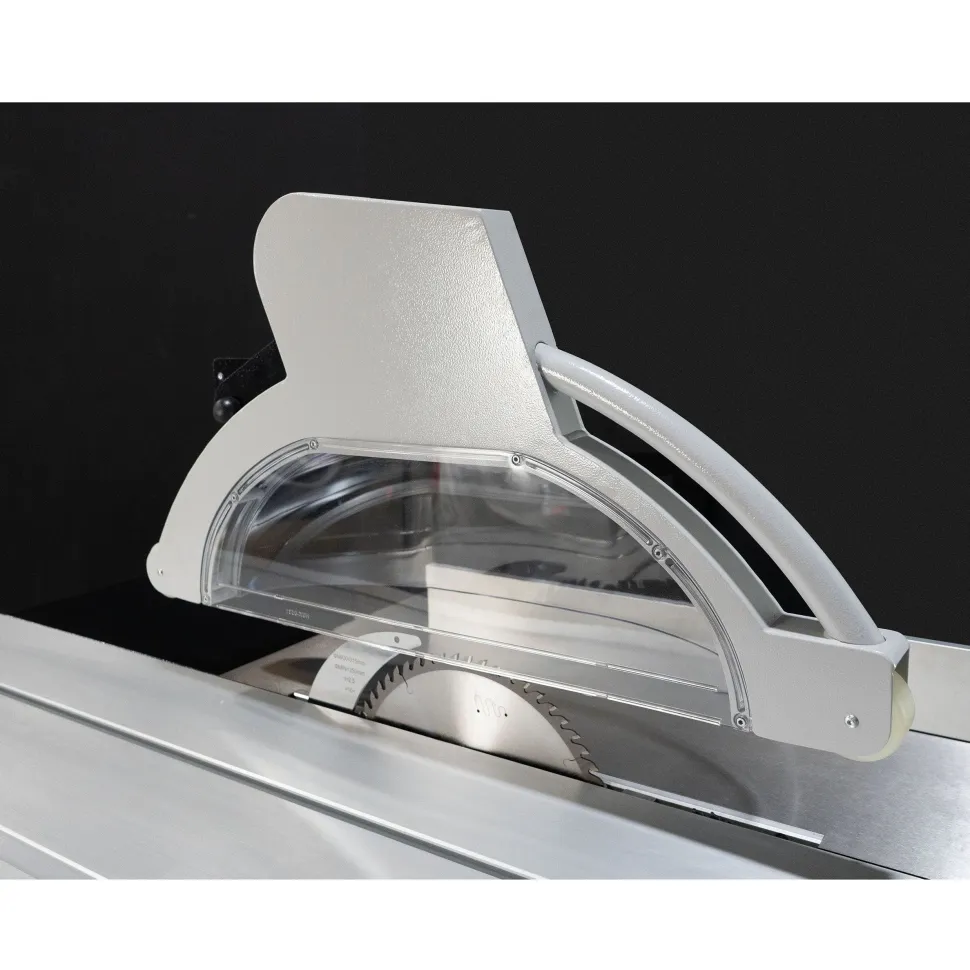

Introducing the New BMS.3200.IR 40-year Edition. The BMS series is one of Maksiwa’s top seller sliders that has been completely redesigned from the ground up with improved construction and materials. The new design is more ergonomic and features a more powerful 1HP scoring motor, adjustable leveling feet, dual blade covers, integrated dust collection exhaust on a swing-away arm, and new soft touch buttons and control panel. All these improvements come at the same unbeatable price as before!
Features

Main Motor: 5 HP/ 4000 RPM 3.7 Kw

Max Blade Diameter: 12″/305 MM

Main Blade Arbor: 1 3/16″ 30 MM

Main Blade Max cutting Height at 90°: 3 1/2″/90 MM

Main Blade Cutting Height at 45°: 2 1/8″ – 53 MM

Scoring Motor: 1 HP/8000 RPM .74Kw

Scoring Motor Blade: 4 3/4″ 120 MM

Scoring Blade Arbor: 3/4″ 20 MM

Scoring Blade Type: Conical

Max Ripping Capacity: 51″ 1295 MM

Crosscut Capacity: 126″3200 MM

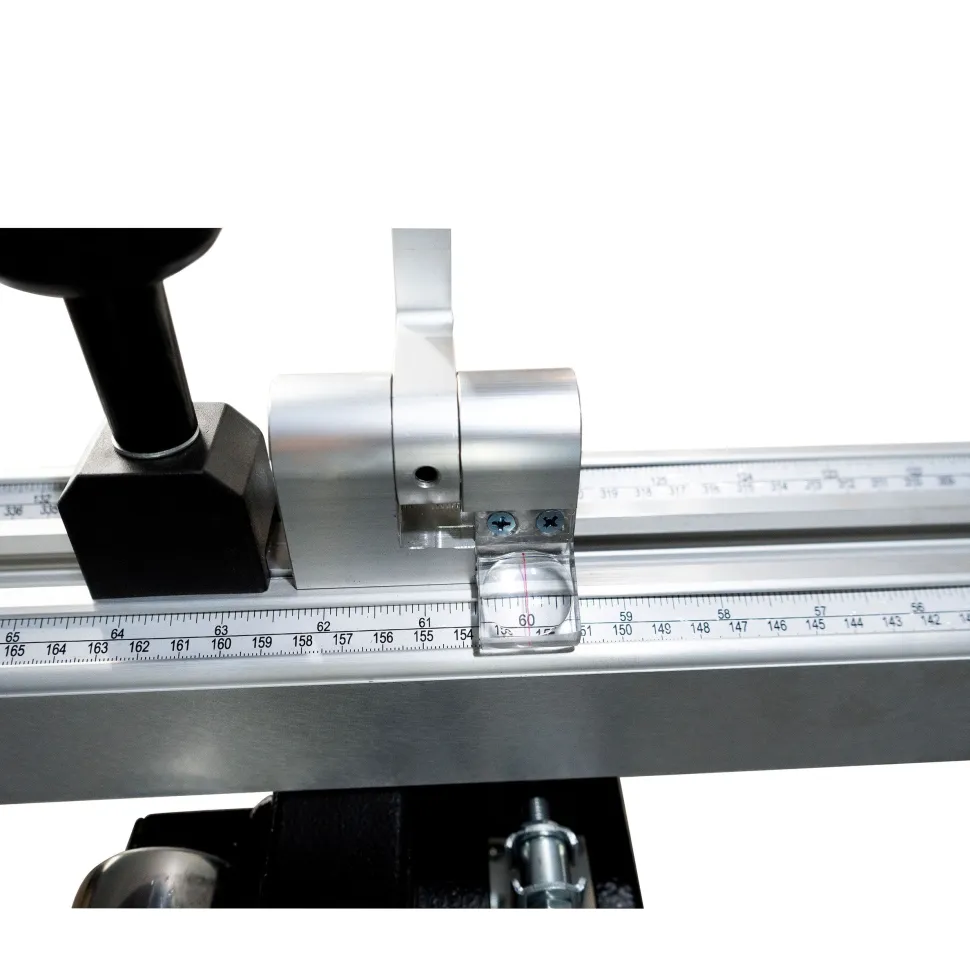

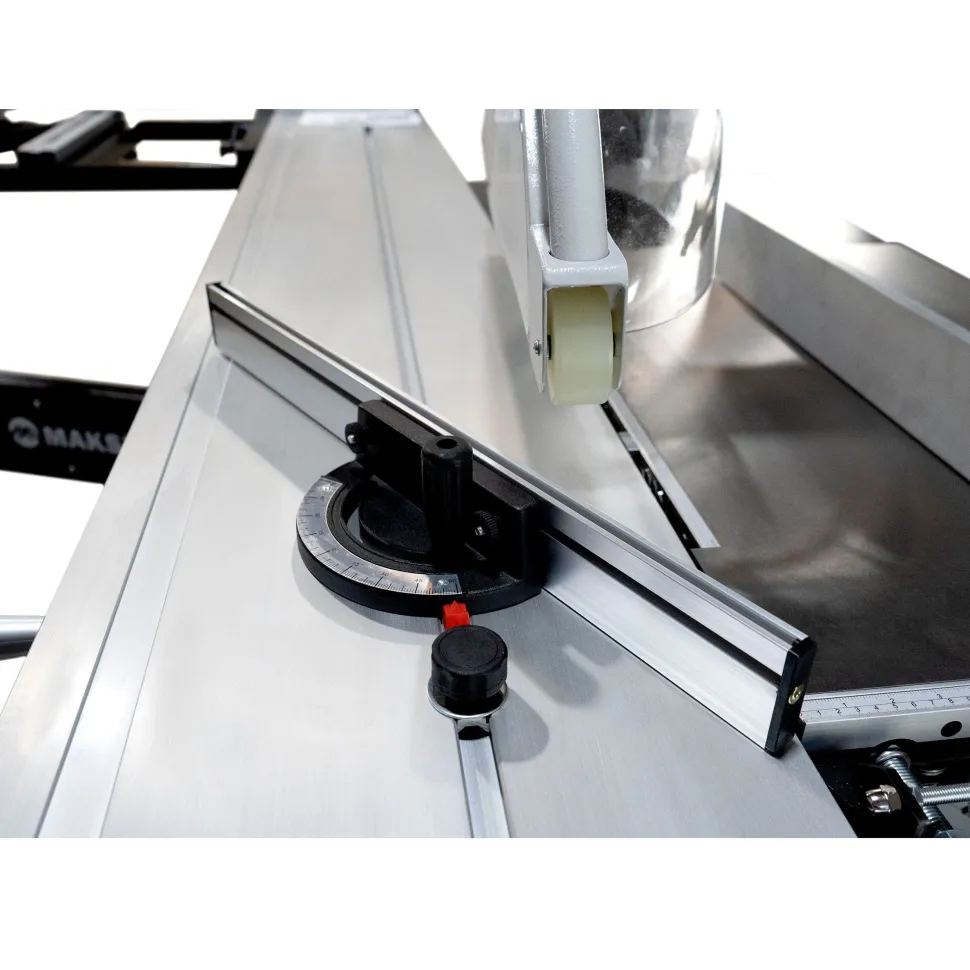

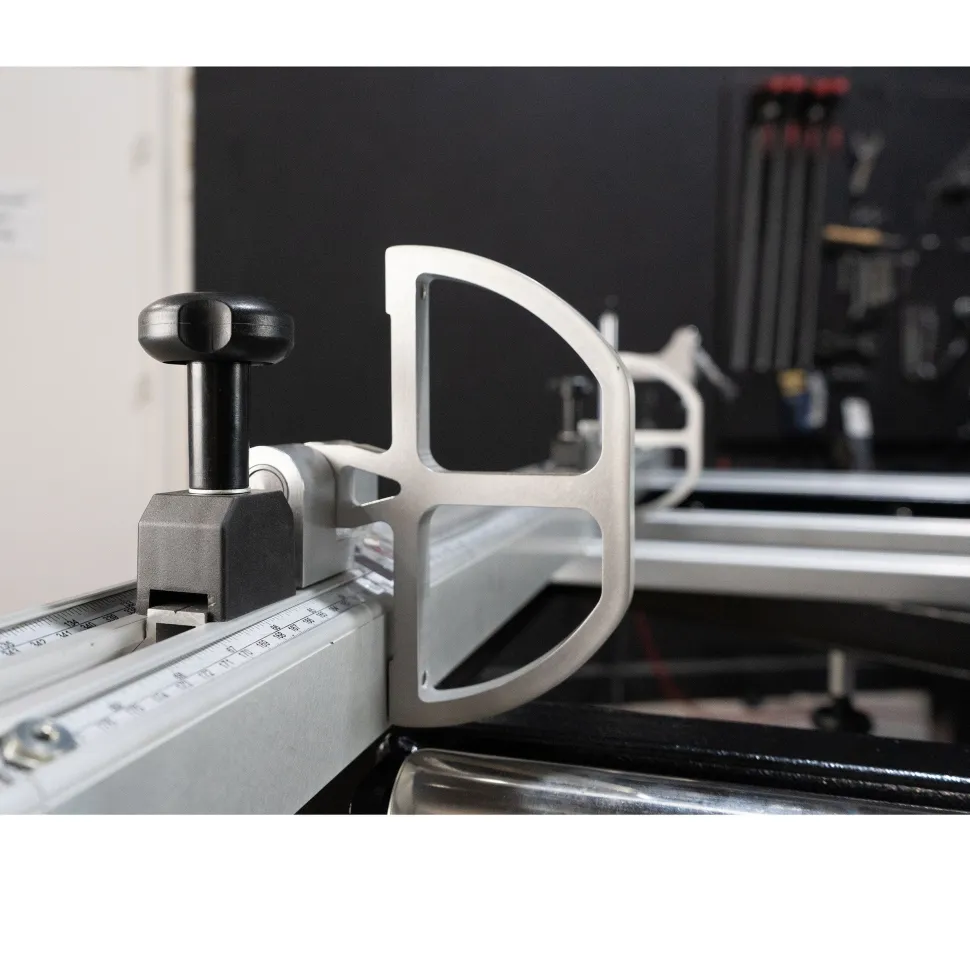

Crosscut Fence Capacity Closed/Open: 74-3/4″/108″ – 1899 MM/2743 MM

Machine Working Dimensions: 126″ x 137″ x 52″ – 3200 x 3480 x 1321 MM

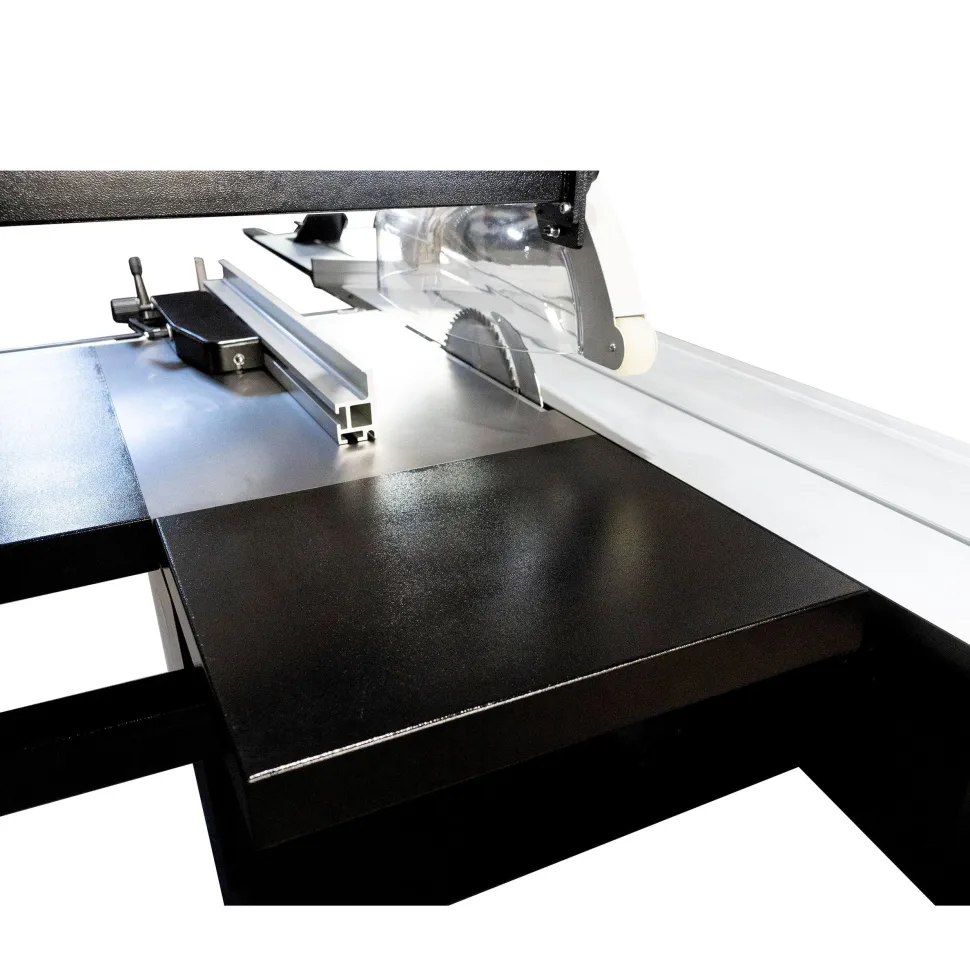

Cast Iron Table Dimension: 31-1/2″L x 21″W x 34 3/4″H, 800 X 553 X 883 MM

Sliding Table Dimension: 126″L x 14-3/4″W, 3200 x 375 MM

Dust Collection Port (2}: 4″ – 100 MM

Minimum Dust Collection Requirements: 1000 CFM/28M/MIN

Electrical Specs: 1 Phase 220V 22 Amps 60 Hz or Optional 3 PH, 220V 11 Amps 60 Hz

Purchase includes scheduled video assistance from a certified Technician with set up installation and training.

5HP – 3 PH Unit Version is available upon request.

When ordering, you will receive a Policy Informational sheet from Maksiwa. It willprovide delivery and setup requirements and includes the selection of 5HP/1PH or 5HP/3PH versions. Verify your power requirement before ordering.

Outlet Wire not included
