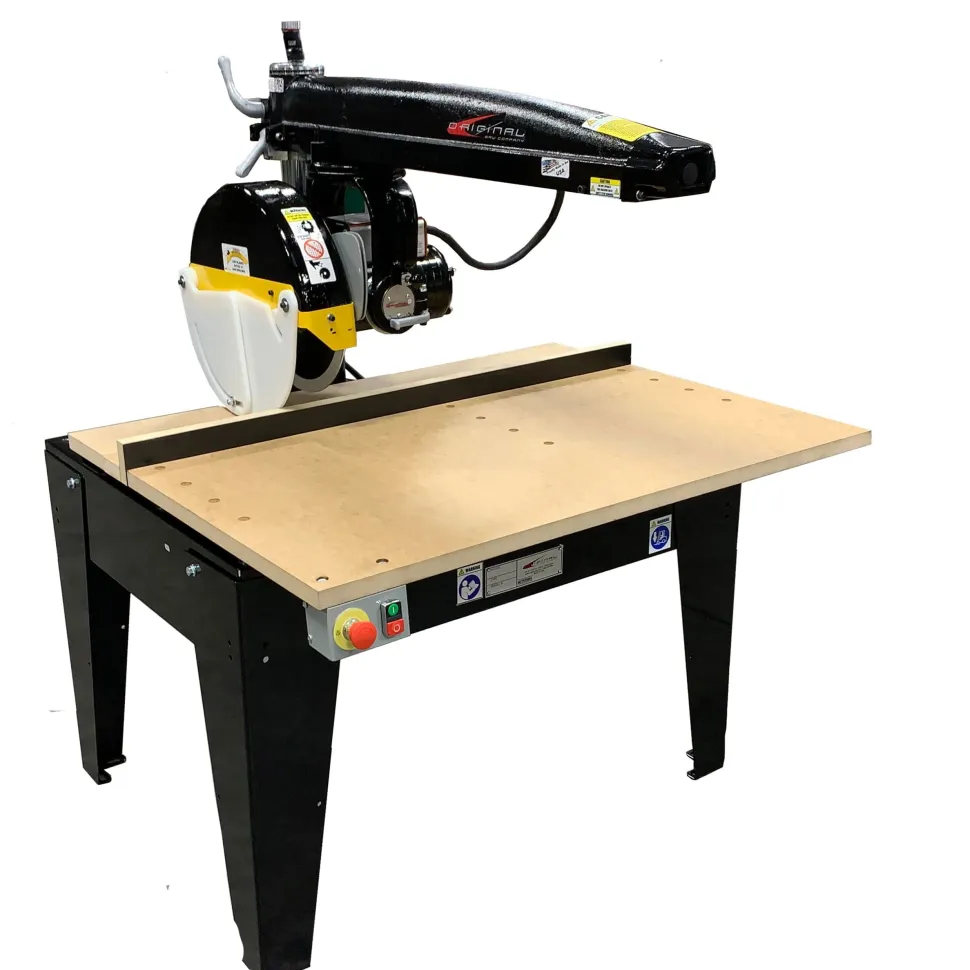

Radial Arm Saw with 16″ Blade and 24″ Crosscut, 5HP 3PH 208/230V

122,99 $

SKU: SKU9J8X1W Categories: Radial Arm Saws, Saws, Woodworking Machines Tag: Original Saw Brand: Original Saw

Description
Reviews (0)

Perform straight cuts, bevel cuts, dados, miter cuts, compound bevels, with this massive 500 pound Heavy Duty Series radial arm saw, model 3546-208/230. This versatile saw by the Original Saw Company is well suited for use in custom cabinet shops, school tech departments, lumber yards and home centers, manufacturing plants, or the serious wood shop.

From its flat bottom induction motor to its heavy cast iron arm and throughout its heavy gauge steel powder coated frame and legs to its oversized table top, Original Saw’s radial arm saws say quality, repeatability, accuracy, and value. Precision carriage riding on 8 wide-contact, double-row ball bearings providing a very smooth vibrations free travel. These machines have proven themselves in thousands of manufacturing companies throughout the world. Order any Original Saw 22″ Extension Table to extend the versatility of your Radial Arm Saw.

Features:

5HP, 3Ph, 208/230V motor

16″ Blade

Automatic blade braking system

Carriage return spring

Adjustable crosscut stop

24” crosscut

Base column lock

Precision carriage riding on 8 wide-contact, double row, ball bearings, which provides smooth vibration-free travel

Oversized MDF table top included

HDPE lower guard provides full coverage

Accessible start/stop button on the left front/edge of the table

Powder coated heavy gauge steel frame and legs

Standard worktable height: 33”

Arbor nut and precision ground arbor collars

Wrench kit (includes allen arbor wrench, flat arbor wrench, and misc. allen wrenches)

Adjustable tension carriage return reel

Dimensions: 52” Depth and 48” Height

Proudly Manufactured in the USA

Plug not include, must be hard wired direct to electrical source

Connecting Electrical Current

The motor is properly connected to the magnetic switch at the factory for operation on the electrical voltage specified on the tag attached to the guard stud. Make sure incoming voltage from your power supply conforms to the voltage specified on the tag.

Remove the magnetic switch cover and insert power supply cable through the dust proof fitting. Connect wires to L1, L2 and L3 for 3PH; L1 and L2 for 1PH. (See manual, page 14, left photo). Do not attach power to the transformer. Attach the ground wire to the ground lug inside the enclosure. Wiring must conform to the National Electrical Code and any applicable local codes.
