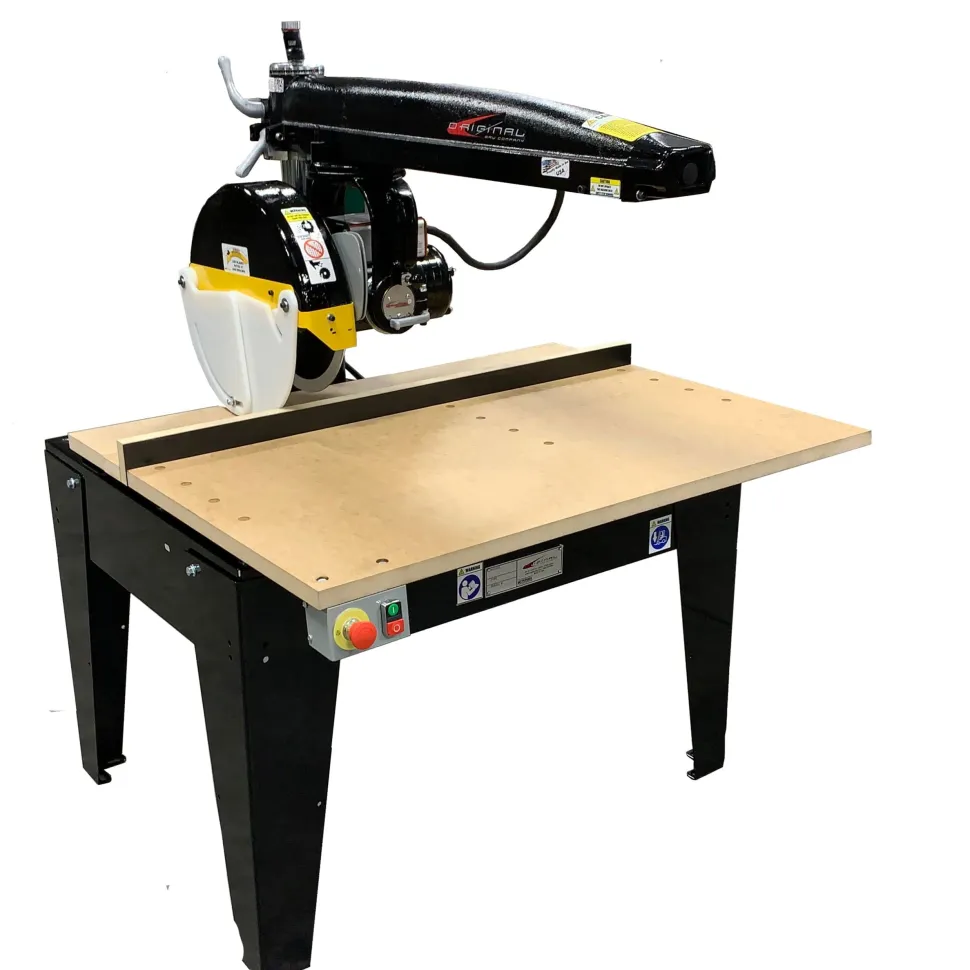

Radial Arm Saw with 16″ Blade and 24″ Crosscut 5 HP 3 PH 460V

120,89 $

SKU: SKUEX38RM Categories: Radial Arm Saws, Saws, Woodworking Machines Tag: Original Saw Brand: Original Saw

Description
Reviews (0)

Perform straight cuts, bevel cuts, miter cuts, dados, compound bevels, all with this massive, heavy duty, 500 pound saw, model 3546-460. Add a rip conversion kit to swivel the motor parallel with the fence to precisely cut down panels. This versatile saw by the Original Saw Company is well suited for use in custom cabinet shops, school tech departments, lumber yards and home centers, manufacturing plants, or the serious wood shop.

From its flat bottom induction motor to its heavy cast iron arm and throughout its heavy gauge steel powder coated frame and legs to its oversized table top, Original Saw’s radial arm saws say quality, repeatability, accuracy, and value. Precision carriage riding on 8 wide-contact, double-row ball bearings providing a very smooth vibrations free travel. These machines have proven themselves in thousands of manufacturing companies throughout the world. Order any Original Saw 22″ Extension Table to extend the versatility of your Radial Arm Saw.

Features:

5HP, 3Ph, 460V motor

16” Blade

Automatic blade braking system

Carriage return spring

Adjustable crosscut stop

24” crosscut

Base column lock

Precision carriage riding on 8 wide-contact, double row, ball bearings, which provide smooth vibration-free travel

Oversized MDF table top included

Powder coated heavy gauge steel frame and legs

HDPE lower guard provides full coverage

Accessible start/stop button on the left/front edge of table

Standard worktable height: 33”

Arbor nut and precision ground arbor collars

Wrench kit (includes allen arbor wrench, flat arbor wrench, and misc. allen wrenches)

Adjustable tension carriage return reel

Dimensions: 52” Depth and 48” Height

Proudly Manufactured in the USA

Plug not include, must be hard wired direct to electrical source

Connecting Electrical Current
The motor is properly connected to the magnetic switch at the factory for operation on the electrical voltage specified on the tag attached to the guard stud. Make sure incoming voltage from your power supply conforms to the voltage specified on the tag. Remove the magnetic switch cover and insert power supply cable through the dust proof fitting. Connect wires to L1, L2 and L3 for 3 phase; L1 and L2 for single phase (See page 14 left photo in the manual). Do not attach power to the transformer. Attach the ground wire to the ground lug inside the enclosure. Wiring must conform to the National Electrical Code and any applicable local codes.
