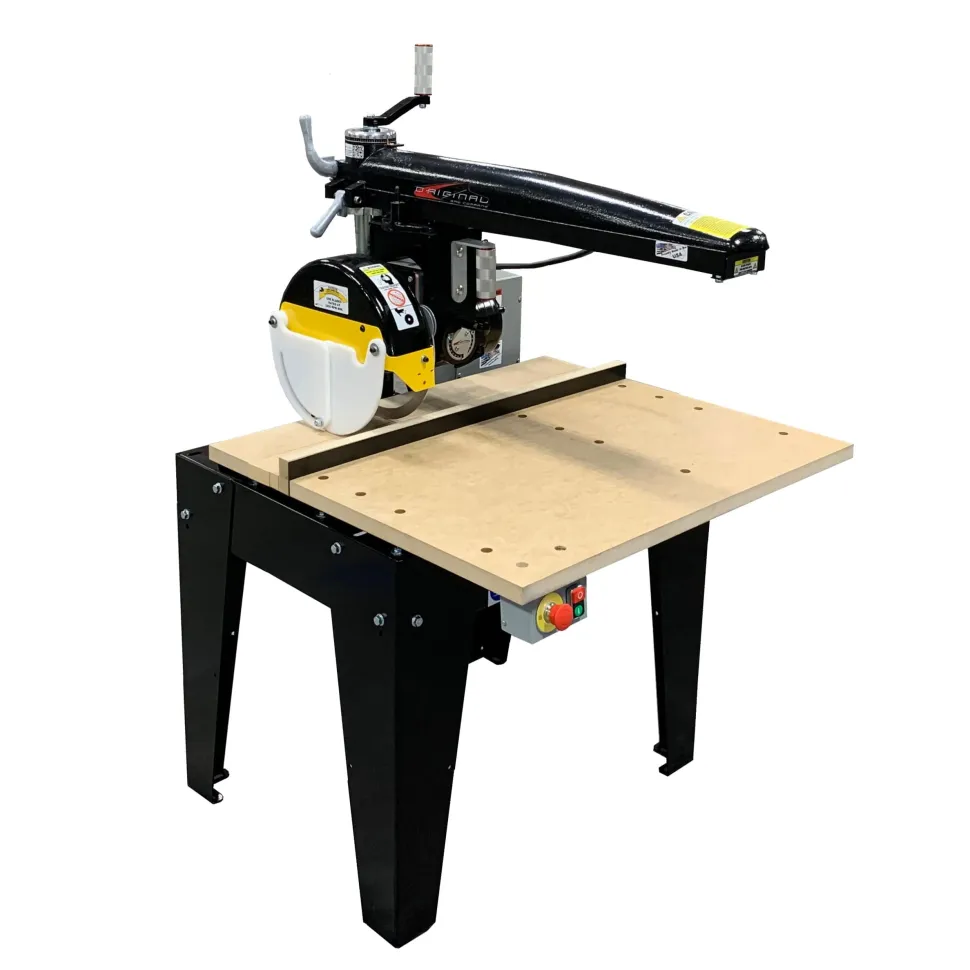

Radial Arm Saw with 12″ Blade and 24″ Crosscut, 3HP 3PH 208/230V

Original price was: 6 145,69 $.Current price is: 126,99 $.

SKU: SKU069N2V Categories: Radial Arm Saws, Saws, Woodworking Machines Tag: Original Saw Brand: Original Saw

Description
Reviews (0)

Crosscut, bevel cut, miter cut, and swivel to a rip position to precisely cut down panels all with this one machine.This versatile saw is well suited for wood cutting up to 3” as well as cutting off 24” wide panels for squaring shelving and doors, and other similar applications.

This Contractor Series radial arm saw is a workhorse with a 3HP, 3 Phase, 208/230V TEFC motor and internal automatic brake. It has the best cut quality in its class and is a very precise cutting machine with repeatable accuracy that can be depended on day-after-day for years to come. These machines are fully assembled and tested in The Original Saw Company’s facility and then packaged. This makes setting up your saw a snap. Order any Original Saw 22″: Extension Table to extend the versatility of your Radial Arm Saw.

Features:

3HP, 3PH, 208/230V Motor

Automatic blade braking system

24” crosscut

Precision carriage riding on four tight-tolerance convex bearings mounted horizontally

Oversized MDF table top included

Powder coated heavy gauge steel frame and legs

Standard worktable height: 32”

E-Stop

Arbor nut and precision ground arbor collars

Wrench kit (includes allen arbor wrench and flat arbor wrench)

Adjustable tension carriage return reel

Proudly Manufactured in the USA

Plug not include, must be hard wired direct to electrical source

Connecting Electrical Current

The motor is properly connected to the magnetic switch at the factory for operation on the electrical voltage specified on the tag attached to the guard stud. Make sure incoming voltage from your power supply conforms to the voltage specified on the tag.

Remove the magnetic switch cover and insert power supply cable through the dust proof fitting. Connect wires to L1, L2 and L3 for 3PH; L1 and L2 for 1PH. (See manual, page 14, left photo). Do not attach power to the transformer. Attach the ground wire to the ground lug inside the enclosure. Wiring must conform to the National Electrical Code and any applicable local codes.
