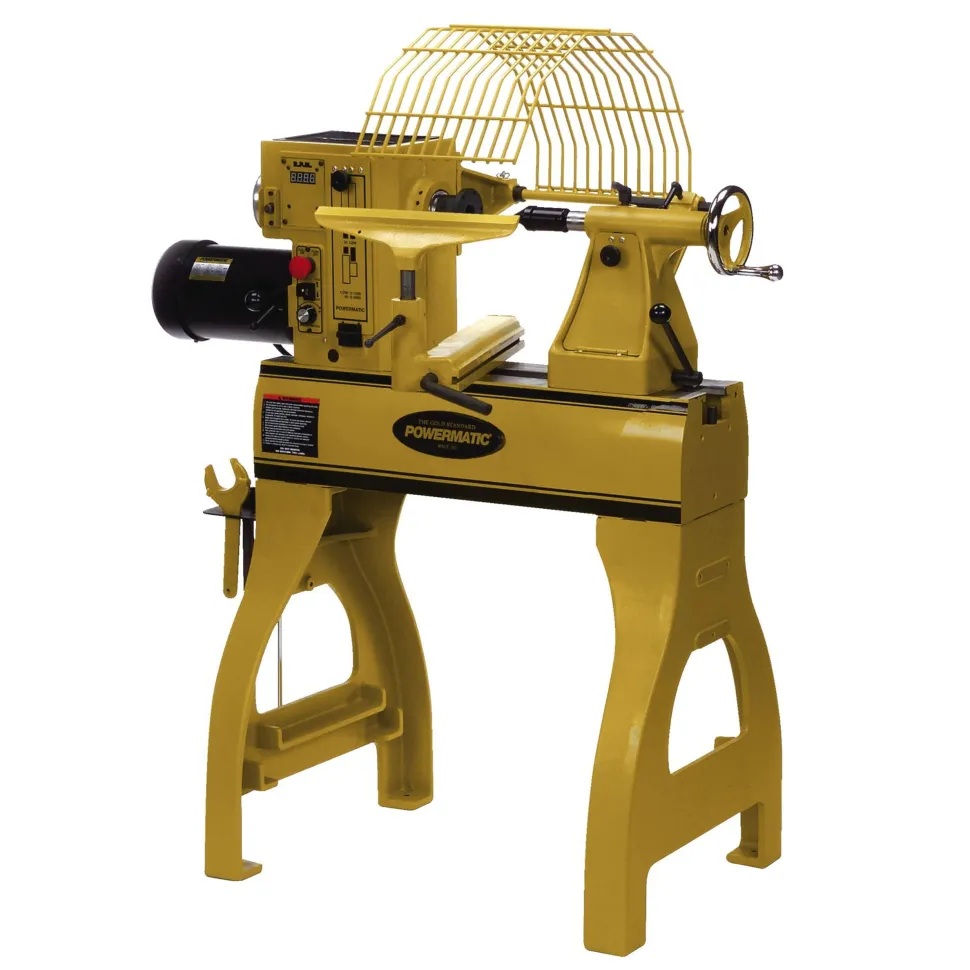

20″ x 20″ Short Bed Woodworking Lathe 2 HP 1 Ph 220V PM2020

You can have the features you love on the 3520B lathe but in a smaller footprint. The PM2020 lathe is perfect for you if you’re short on space, or for your projects where a short bed is convenient. Like the 3520B, the PM2020 features a sliding headstock, electronic variable speed with low and high speed ranges, and the spindle lock. The enhanced features include a digital RPM readout, built in spindle indexing on the head stock, and a re-designed tailstock with internal storage, chrome trimmed handwheels, and a laser etched quill which is self-ejecting. Extra features include a sliding hammer knockout rod with brass tip, two position mount for optional bed extension, and a metal shelf and attached tool caddy for tool storage.

Power wiring requirements:1PH, 220V, Lathe has a internal power Inverter that increases Lathe system to 3PH for increased power.
Specifications:

• Motor: 2HP, 3Ph with Inverter, 230V, 6.2A
• Swing Over Bed (In.): 20
• Swing Over Tool Rest Base (In.): 17
• Distance Between Centers (In.): 20
• Headstock Movement: Full Length of Bed
• Spindle Bore: 5/8
• Tailstock Bore: 3/8
• Spindle Taper: MT-2
• Quill Taper: MT-2
• Ram Travel Quill Travel: 4-1/2
• Spindle Threads (In. x TPI): 1-1/4 x 8
• Outboard External Threads (In. x TPI): 1-3/16-18 UNC
• Spindle Speeds: High 125-3200/Low 50-1200
• Speed Range: 50-3200
• Number of Indexing Positions: 48
• Centerline of Spindle to Floor (In.): 44 (adjustable)
• Outboard Turning: 88
• Bed Construction: Cast Iron
• Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
• Spindle lock and built in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
• Redesigned tool rest geometry allows for better chisel movement along the tool rest
• Laser etched quill is self-ejecting.
• Brass tipped knockout bar concentrates the action in the sliding handle; the brass tip will not damage drive centers
• Attached tool caddy allows convenient access to centers, wrenches, etc.
• Tailstock has internal storage for additional accessories
• Chrome trimmed handwheels are ergonomic for a comfortable feel
• Standard Equipment: 2HP TEFC Motor, Safety shield, 3″ face plate and face plate wrench, 14″ tool rest,
• Multiple ball-bearing live center, Brass tipped knockout rod
