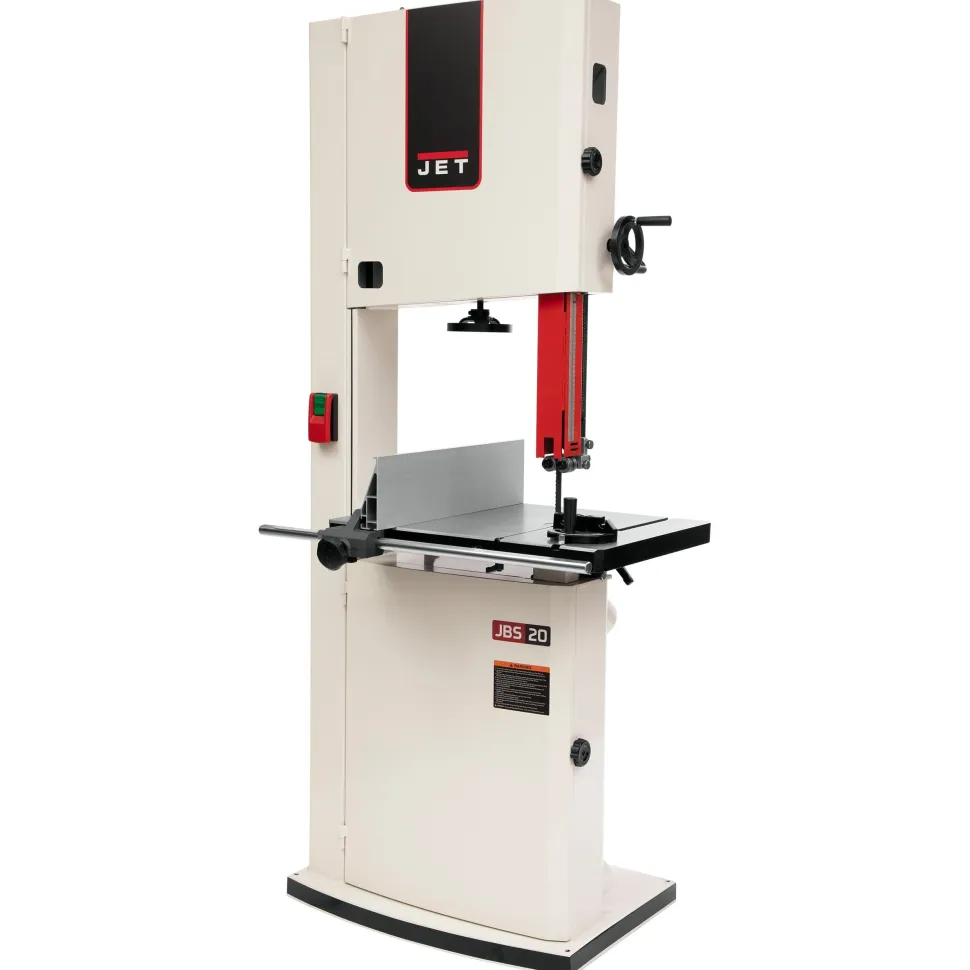

20" Woodworking Bandsaw 3 HP 1 PH 230V JWBS-20-3

20″ Woodworking Bandsaw 3 HP 1 PH 230V JWBS-20-3

130,89 $

SKU: SKUZRQ1L8 Categories: Bandsaws, Saws, Woodworking Machines Tag: Jet Brand: Jet

Description
Reviews (0)

More re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The Jet® JWBS-20-3 20” steel frame bandsaw is engineered to build great projects through superior performance. The heavy-duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up.

Bandsaw Specs: What They Mean & Why They Matter:

Horsepower (HP) – Determines cutting power, especially important for hardwoods and demanding resawing.

Resaw Height – The maximum board thickness the saw can slice vertically.

Maximum Cutting Width – The maximum width of material that fits between the blade and the frame.

Blade Width Range – Indicates what blades the saw can accept, affecting both curve cutting ability and resaw performance.

Table Size – Affects how well the saw supports and stabilizes your workpiece.

Construction Material – Heavier material better absorbs vibration and adds stability.

Features:

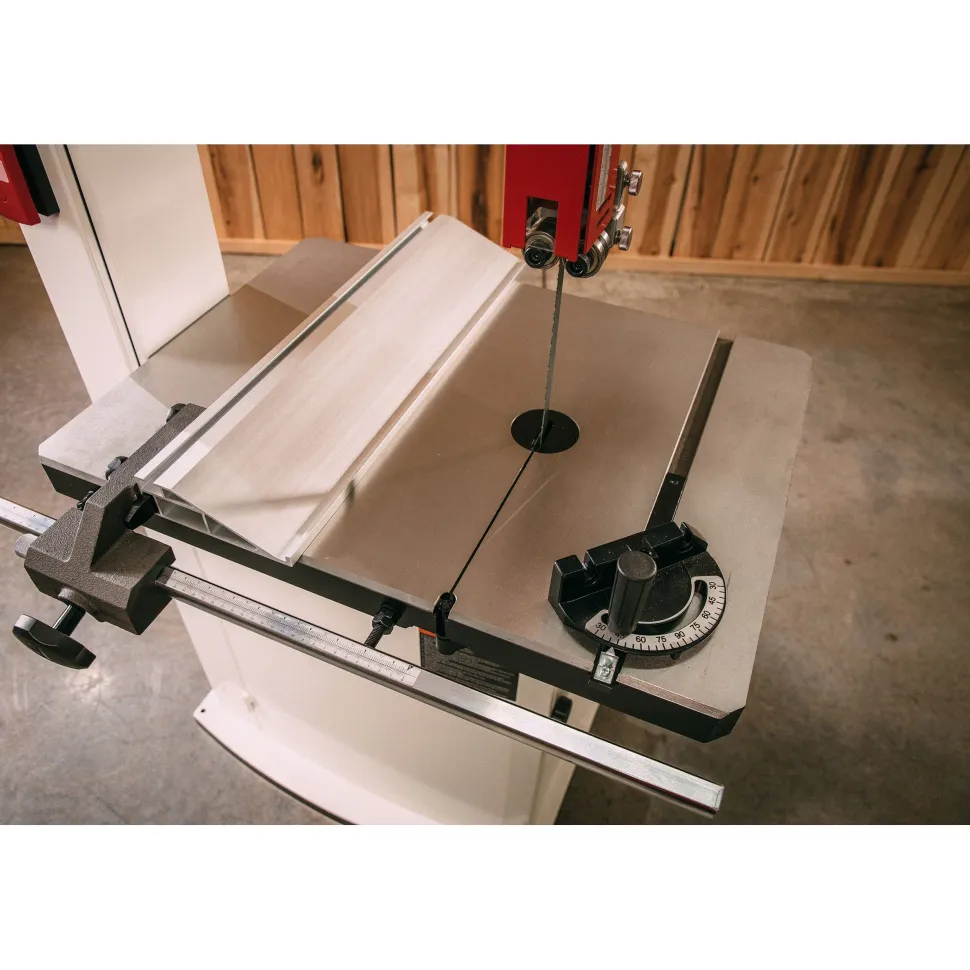

27-1/4 x 20″ precision ground cast iron table for added stability and work support

Fence system features a micro-adjustable, dual-position side plate

Tool-less, independently adjustable, upper and lower ball bearing guides

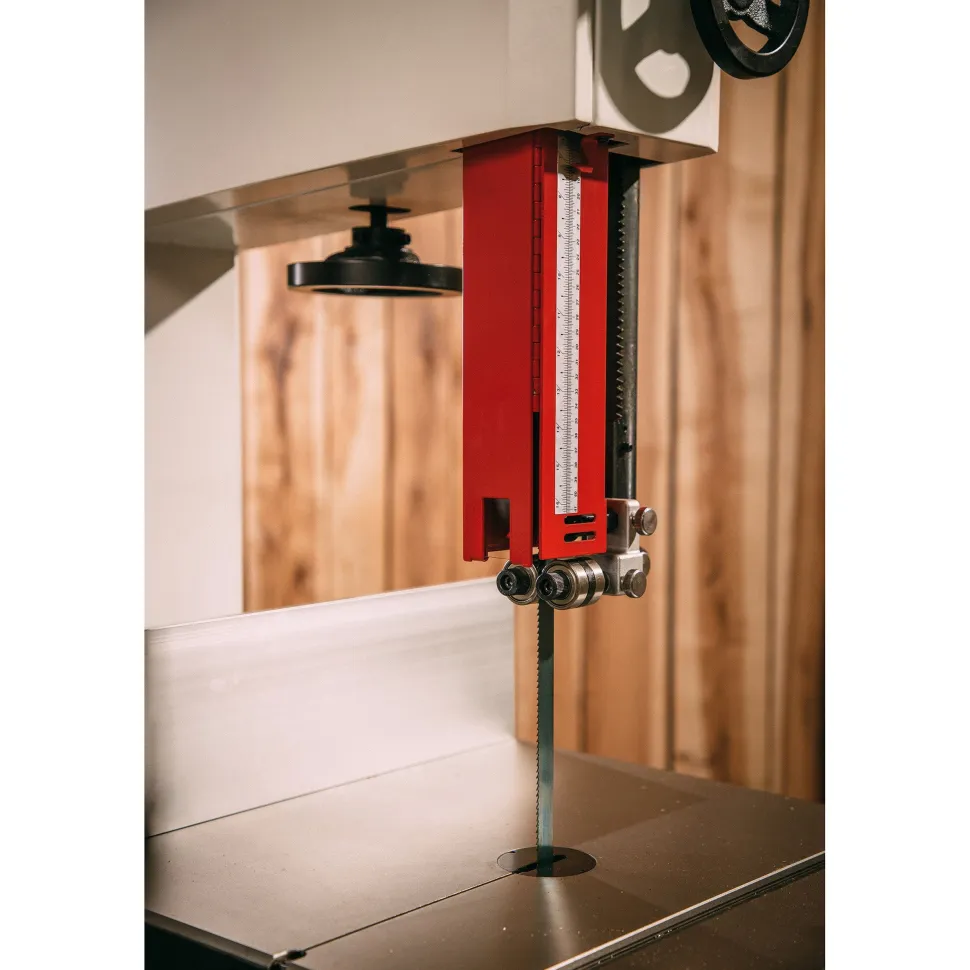

Rigid, four-sided guide post with rack and pinion adjustment for optimum blade support

Easy-to-read blade tension scale can be viewed through upper door window

Single knob adjustment simplifies the blade tracking process

Blade tracking window provides clear view of blade during tracking

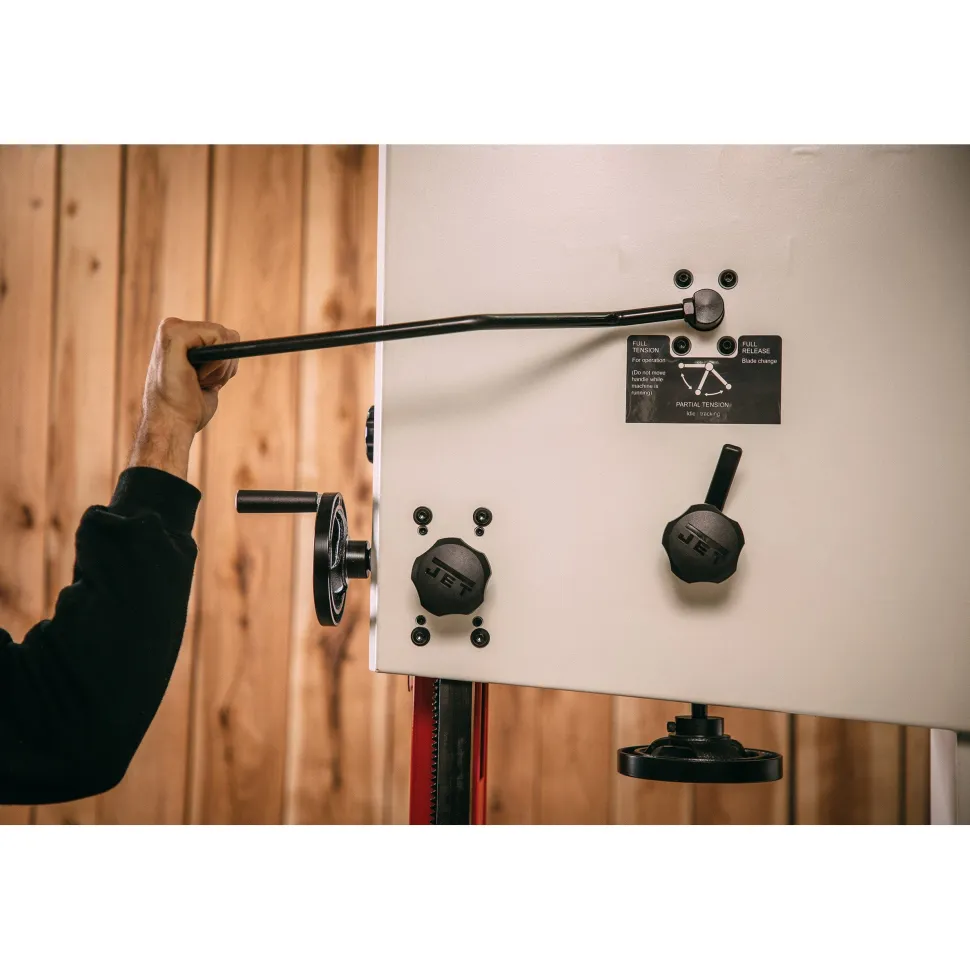

Heavy duty tensioning with quick release features three settings: full tension, partial tension and full release

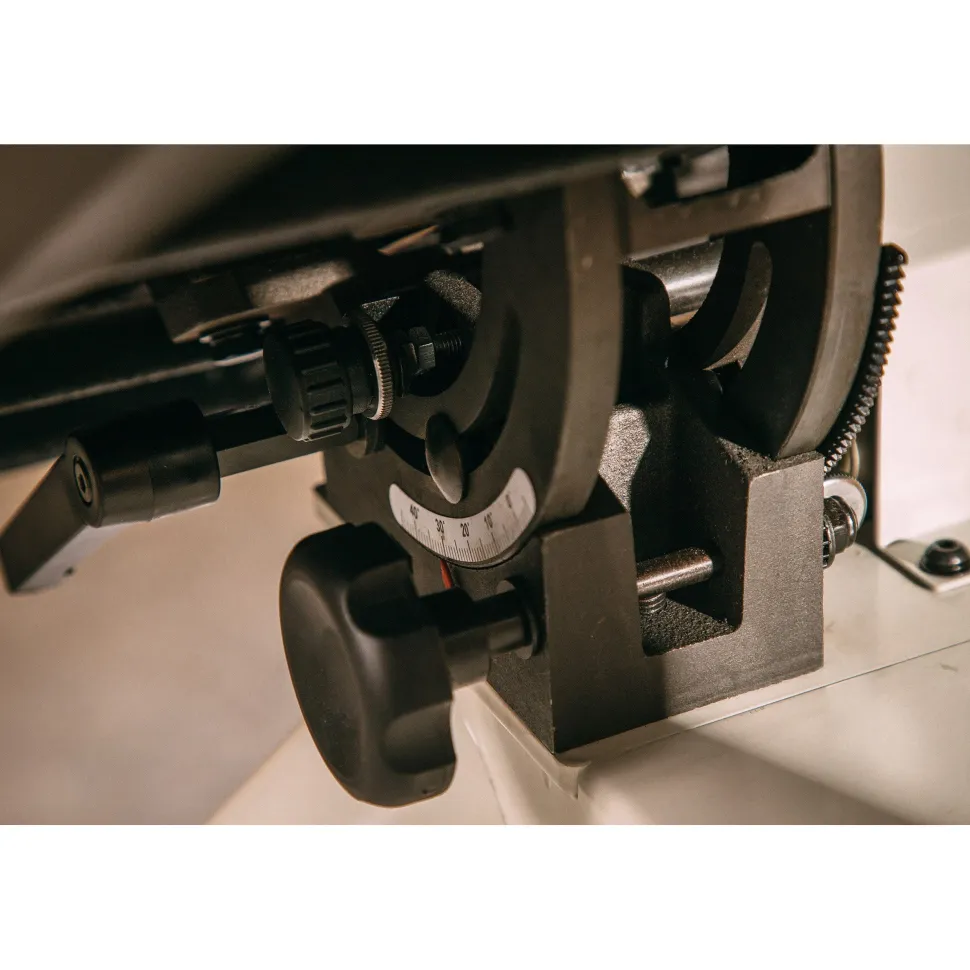

Cast iron trunnion for maximum support and stability

Slotted table allows for front blade removal

Cast iron handwheels and ergonomically designed knobs make adjustments smooth and easy

Round table insert features leveling screws for precise adjustment

Specifications:

Motor HP: 3 HP

Voltage: 230V

Phase: 1 PH

Amps (if applicable): 12A

Max Resaw Height: 16″

Max Cutting Width: 20″

Wheel Size: 20-1/4″

Wheel Material: Cast Iron

Quick Blade Release: Yes

Blade Length: 158″

Blade Width Range: 1/8″ – 1-1/2″

Blade Speed: 2,530 / 4,850 SFPM

Blade Guide Type: Tool-less adjustable

Table Size: 27-1/4″ x 20″

Table Tilt (L/R Degree): 5°/45°

Table Material: Cast Iron

Dust Port Size: 4″ (2)

Height: 75″

Footprint: 37″ L x 33-1/8″ W x 88″ H

Warranty Information: 5-Year Limited Warranty

What’s Included:

(1) Jet 20″ Woodworking Bandsaw – 3 HP 1 PH 230V – JWBS-20-3

(1) Rip Fence/Resaw Fence

(1) Miter Gauge

(1) Bandsaw Blade – Hook – 158″ x 1″ x 0.035″ – 3 TPI
