14" x 20" Benchtop Woodworking Lathe 1 HP 1 Ph 115V PM2014

14″ x 20″ Benchtop Woodworking Lathe 1 HP 1 Ph 115V PM2014

Original price was: 1 499,00 $.Current price is: 128,89 $.

SKU: SKU4FVS4E Categories: Lathes, Lathes & Woodturning, Woodworking Machines Tag: Powermatic Brand: Powermatic

Description
Reviews (0)

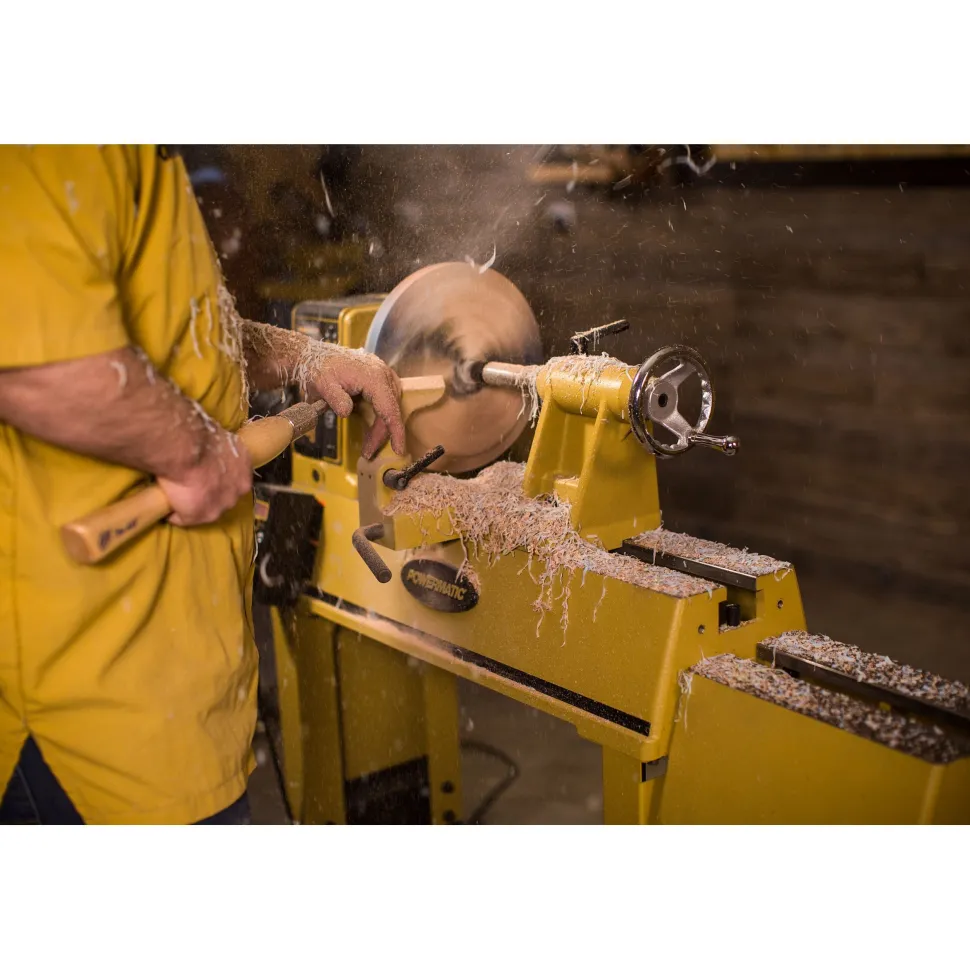

The Powermatic® PM2014 Lathe was designed with turners in mind. The smaller stance is ideal for those with smaller shops, and it disassembles for easy transport to turning shows or other events. Plug it into a standard 115V outlet (15-amp circuit recommended) and get 230V of output through the inverter in the motor. The inverter also works to maintain consistent torque when in use. From spindles and table legs to bowls and other hollow forms, the PM2014 is a steadfast, capable performer. The 1 HP motor can turn large work within three variable speed ranges: 15-900 RPM, 30-1,800 RPM and 60-3,600 RPM. The magnetic control box clearly displays your spindle speed (and indexing positions) and is magnetically mounted so you can easily move it to suit your turning operation. The 24 position locking indexing positions let you locate repeated features, such as flutes and inlays, around the perimeter of the turning.
Features:

Motor only requires a 115 volt single phase input to provide a consistent torque with 1 HP/230 volt/3-phase output, using an inverter

Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety

24 positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process

Sliding headstock and removable tailstock make outboard turning easy

Cast-iron bed reduces motor vibration for decreased noise and added precision

Three variable speed ranges: 15-900 RPM, 30-1,800 RPM and 60-3,600 RPM

With constant monitoring of the motor, the inverter keeps torque consistent

Lathe easily disassembles for better transport

Acme threads on tailstock for smoother operation and longevity

Attached tool caddy allows convenient access to centers, wrenches, and accessories

Banjo features a non-marring, pinch style clamp for solid tool rest placement

Chrome trimmed hand wheels are ergonomic for a comfortable feel

Main power disconnect on rear of headstock lock out for safety

Specifications:

Motor: 1 HP, 3 PH, 230V, 60 HZ

Input Power Requirement: 1 PH, 120V

Recommended Circuit: 15 Amp

Speed Range: 15-3,600 RPM

Spindle Thread: 1-1/4″ x 8 TPI

Spindle/Quill Taper: MT2

Index Positions: 24 positive locking

Swing Over Bed: 14-1/4″

Swing Over Tool Rest Base: 10-3/4″

Distance Between Centers: 19-1/4″

Bed Gap: 1-3/4″

Tool Rest: 1″ D post x 8″ W

Overall Dimensions: 52″ x 24″ x 18″

Shipping Dimensions: 34.25″ x 18.9″ x 22.83″

Shipping Weight: 206 lbs.

What’s Included:

(1) Powermatic PM 2014 Lathe (1 HP – 115V)

(1) 3″ Faceplate

(1) Live cone center

(1) Spur center

(1) Tool caddy

Notes:

For outboard turning, slide the tailstock off and slide the headstock to the end of the machine. An optional 13″ bed extension is available (#172525, sold separately).

Stand not included.

When running long extension cords, circuit size requirements may differ, and most VFD or potentiometer-controlled lathers are not compatible with standard GFCI outlets. Consult a certified electrician and/or local electric codes for detailed requirements.
