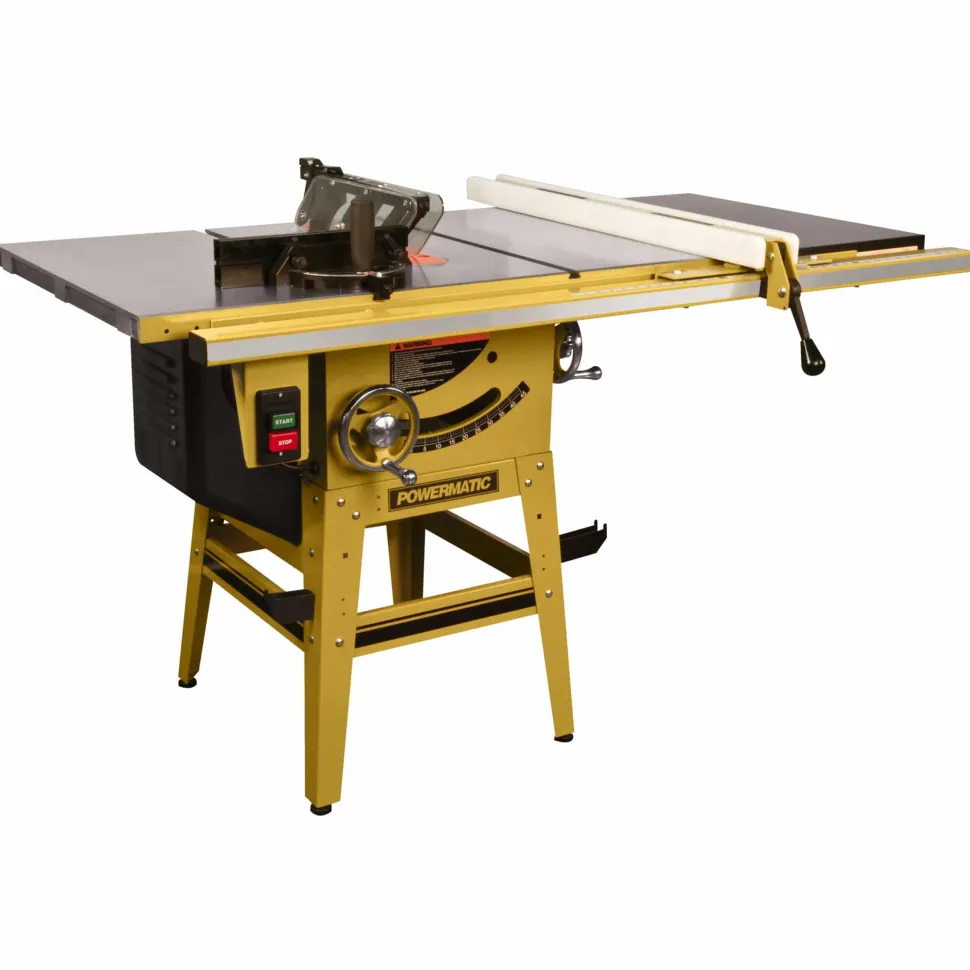

10″ Table Saw with 50″ Accu-Fence System and Riving Knife 1-3/4 HP 1PH 115/230V 64B-50

Features:
•Riving knife maintains close blade proximity to reduce chance of kickback
•Blade not included
•Micro-adjust miter gauge with extension plate offers wider crosscut support
•Blade guard and riving knife have quick release for tool-less mounting and removal
•Precision ground cast iron table and wings have beveled edge for smooth miter gauge entry
•Built-in extraction port increases dust collection efficiency
•Heavy cast iron trunnion ensures smooth blade positioning
•Chrome trimmed handwheels are ergonomically designed
Specifications:
Accu-Fence® locks to rail without play
Arbor Diameter (in) : 5/8
Arbor Speed (RPM) : 4000
Blade Diameter (in) : 10
Dust Collection Minimum CFM Required : 350
Dust Port Diameter (OD/in) : 4
Height (in) : 34
Length (in) : 70
Width (in) : 32
Maximum Depth of Cut (in) : 3-1/8
Maximum Depth of Cut at 45 Degrees (in) : 2-1/8
Maximum Diameter of Dado (in) : 8
Maximum Rip Right of Blade (in) : 50
Maximum Rip Left of Blade (in) : 12
Maximum Width of Dado (in) : 13/16
Miter Gauge Type : T-slot with stops
Motor Amps : 15/7.5
Motor HP : 1-3/4HP
Motor Phase : 1Ph
Motor Voltage : 115/230V
Net Weight : 413.8 pound
Part Number : 1791230K
Prewired : 115 V
RIVING KNIFE
Table Height (in) : 36
Table in Front of Saw Blade at Maximum Depth of Cut (in) : 11-1/2
Table Size without Extension (L x W/in) : 44-1/4 x 27
Table Size without Wings (L x W/in) : 20 x 27
Table Type : Cast Iron
